Octagon Concrete Box, 6" Deep - Welded W/ Conduit KO's

Southwire #: OCR-600 Model #: OCR-600

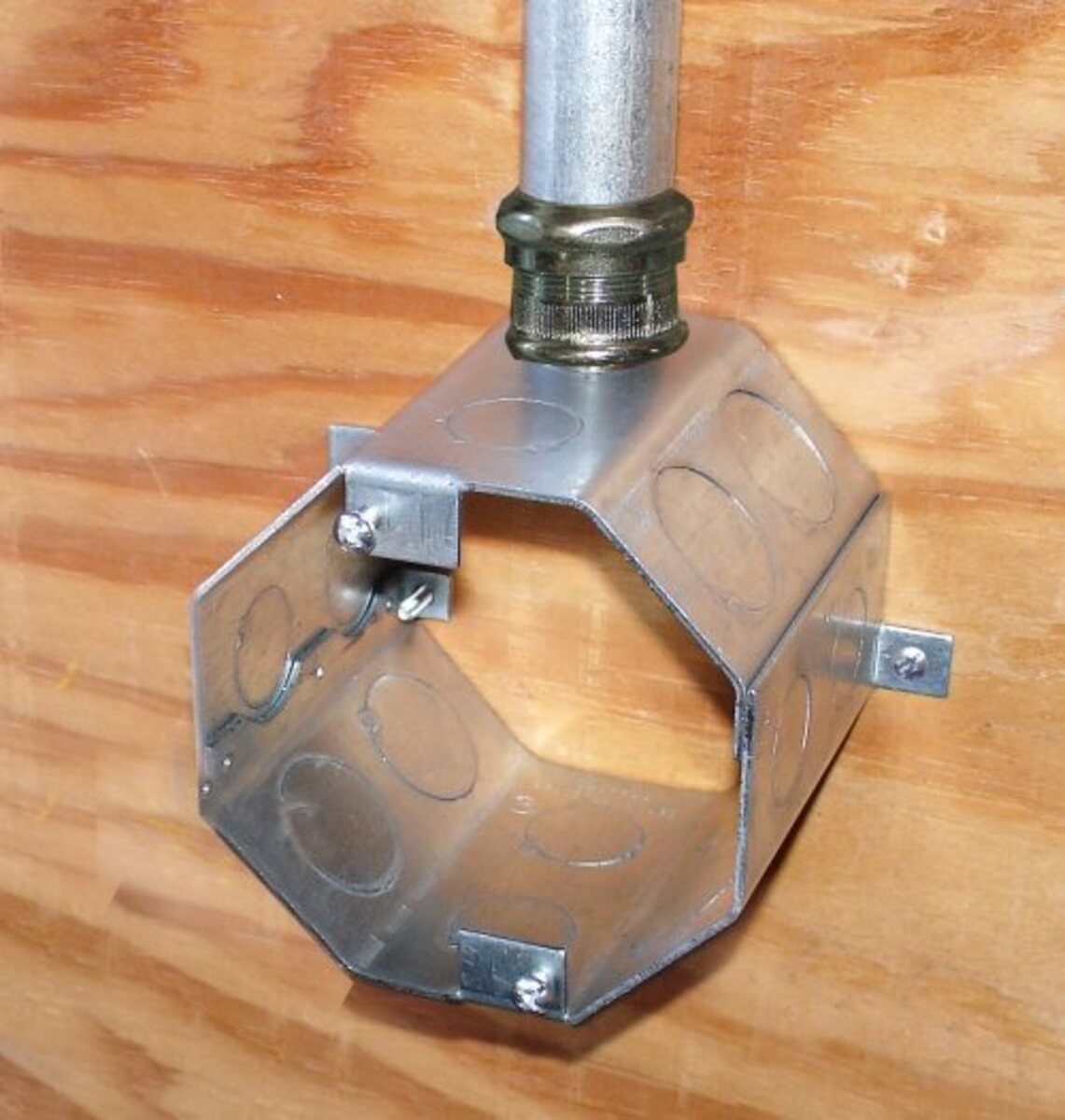

Octagon concrete boxes are used in poured concrete construction. They are installed on wooden or steel concrete forms, once the forms are removed the boxes and conduit are buried in concrete and the end is open to the room wall or ceiling, ready for wire pulling.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Extra long external mounting tabs allow easy installation by nailing or screwing the boxes to wooden or steel concrete forms
  • Knockouts are sealed against box surface to prevent concrete slurry and water from entering the box
  • The top covers are removable allowing any before-pour work (sold separately)
  • UL

Specifications

measurement
imperial metric
Stock # OCR-600 OCR-600
Model # OCR-600 OCR-600
UPC # 785592408303 785592408303
Product Height 6.0 15.24 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.03 0.01 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 74.0 (1212.6) 74.0 (1212.6)
Standard Package 25 25
Bottom Knockouts (2) 1/2", (2) 3/4" (2) 1/2", (2) 3/4"
Side Knockouts (8) 1/2", (8) 3/4" (8) 1/2", (8) 3/4"
Color Silver Silver
