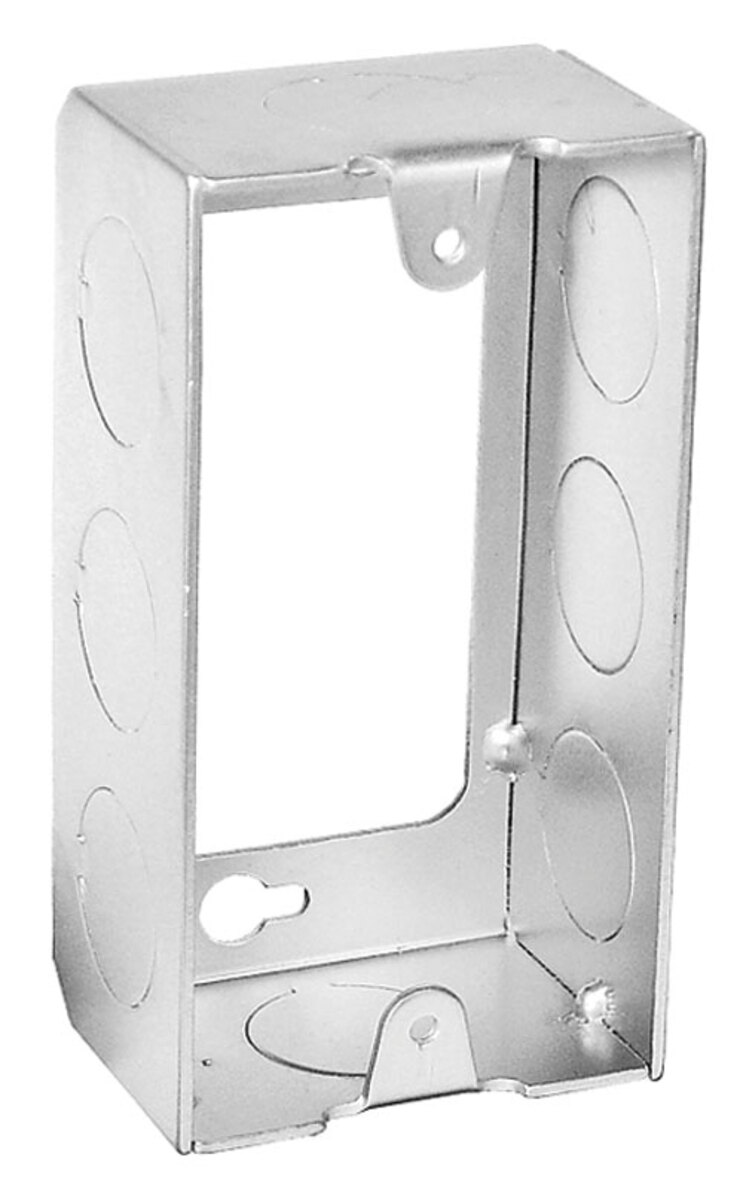

Handy Box Extension Ring, 1-1/2" Deep - Welded W/ Conduit KO's

Southwire #: G19280-E Model #: G19280-E In Stock

Handy box extension rings are added to 4" x 2" handy boxes to increase wiring capacity and provide access for additional conduit runs and electrical wire. Extension rings prevent the need to remove old conduit boxes and wiring from circuits when additional capacity is needed.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Key hole mounting for easy installation
  • UL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # G19280-E G19280-E
Model # G19280-E G19280-E
UPC # 785592280107 785592280107
Product Height 1.5 3.81 inch cm
Product Width 2.0 5.08 inch cm
Product Weight 0.07 0.03 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 11.5 (188.5) 11.5 (188.5)
Standard Package 10 10
Bottom Knockouts (2) 1/2", (2) 3/4" (2) 1/2", (2) 3/4"
Side Knockouts (8) 1/2" (8) 1/2"
Color Silver Silver
