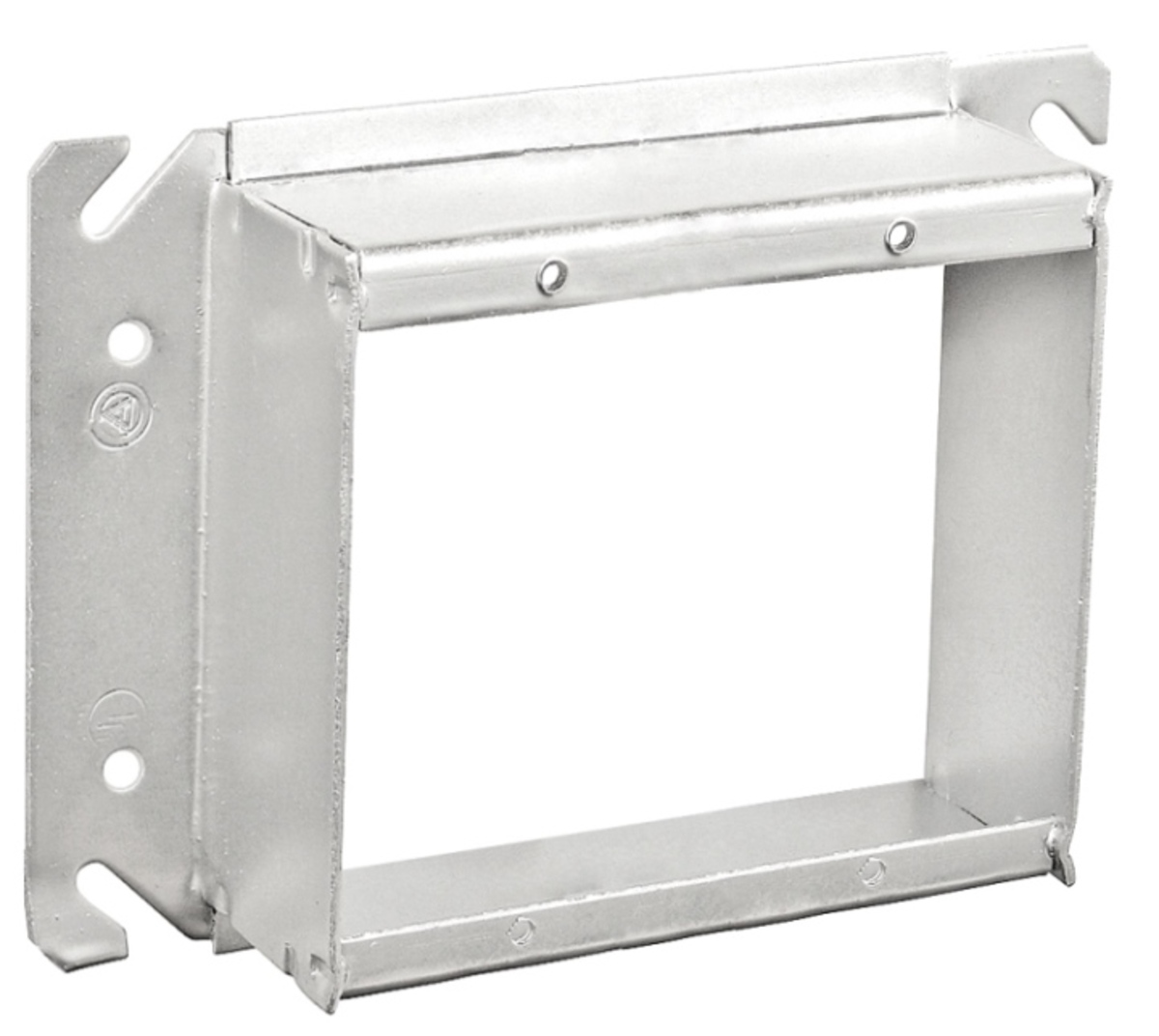

4" Square Two Gang Device Tile Ring - 1-1/4" Raised

Southwire #: 52C21SQ Model #: 52C21SQ

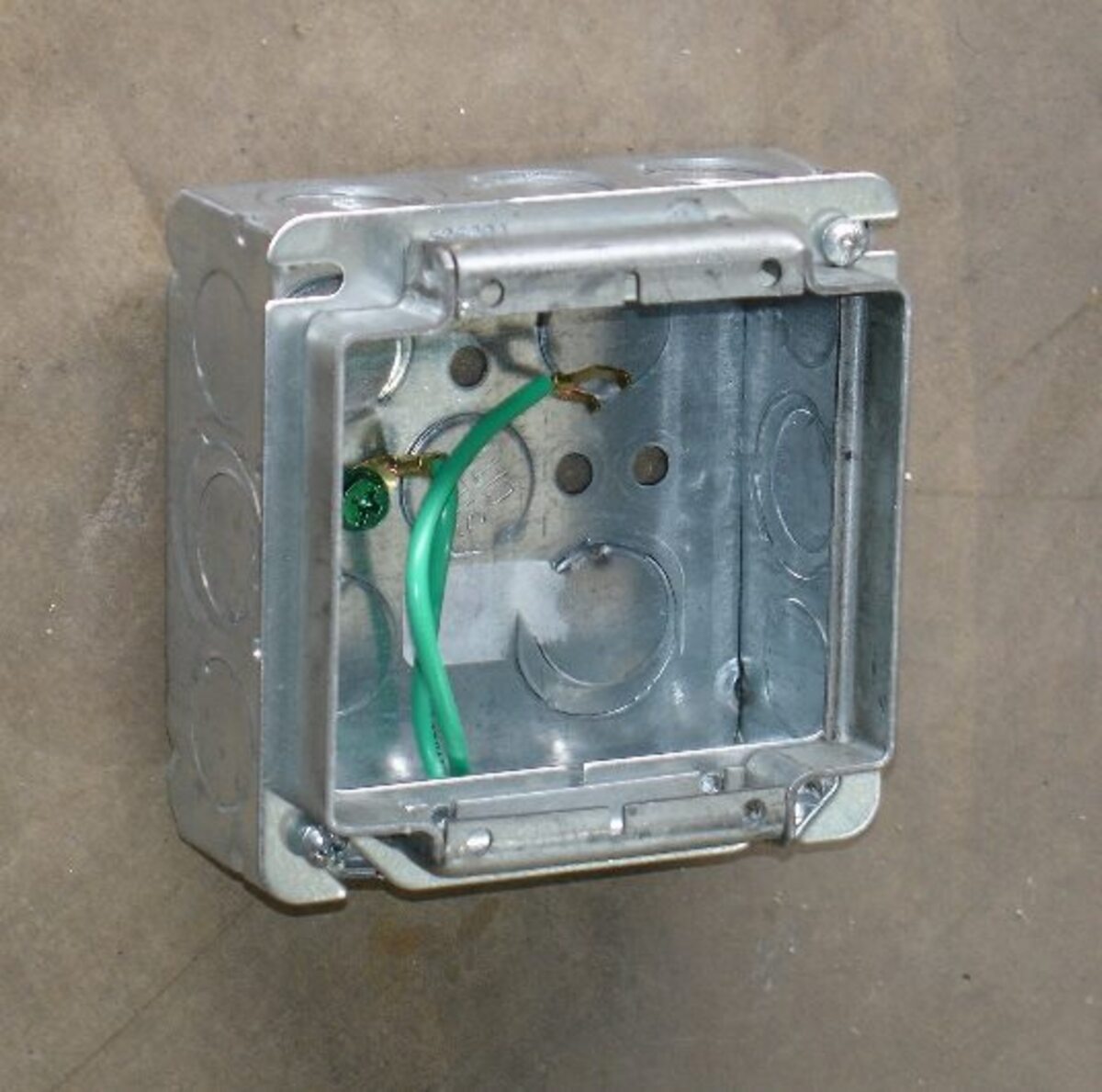

4"square single device rings are used with 4" square boxes to mount switches, receptacles and devices. 90 degree square corners allow for easy, clean tile installation.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • 90 degree, welded corners
  • Angled slots on the covers compensate for up to 12 degrees of box misalignment on upright framing members
  • UL, CUL, RoHS Compliant

Specifications

Stock # 52C21SQ 52C21SQ
Model # 52C21SQ 52C21SQ
UPC # 785592115904 785592115904
Product Height 1.25 3.18 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.13 0.06 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 15.0 (245.8) 15.0 (245.8)
Standard Package 50 50
Color Silver Silver
