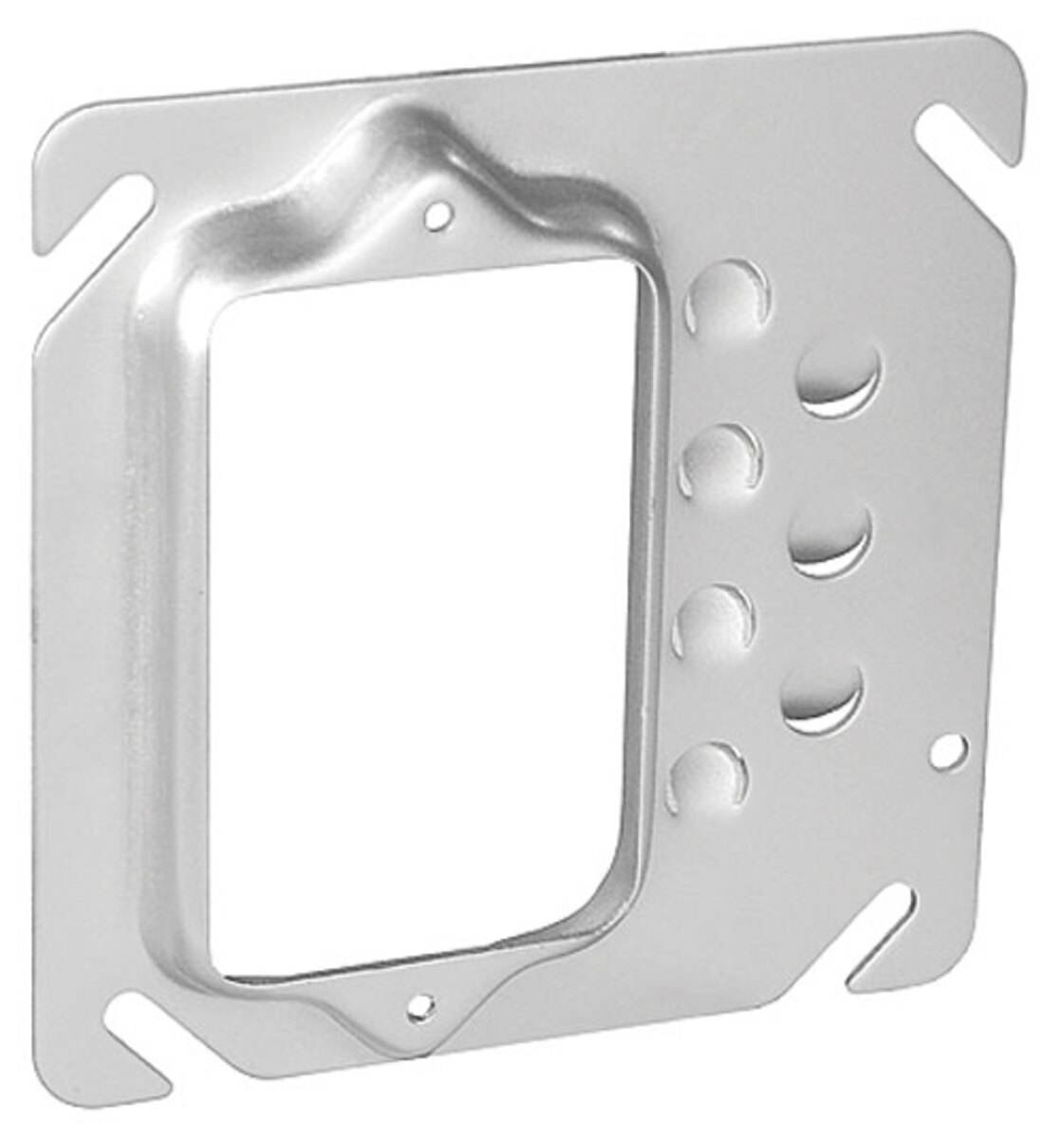

4" Square Single Gang Offset Device Ring - Raised 1/2" p-52C11 52C11

Southwire #: 52C11 Model #: 52C11

Write a Review

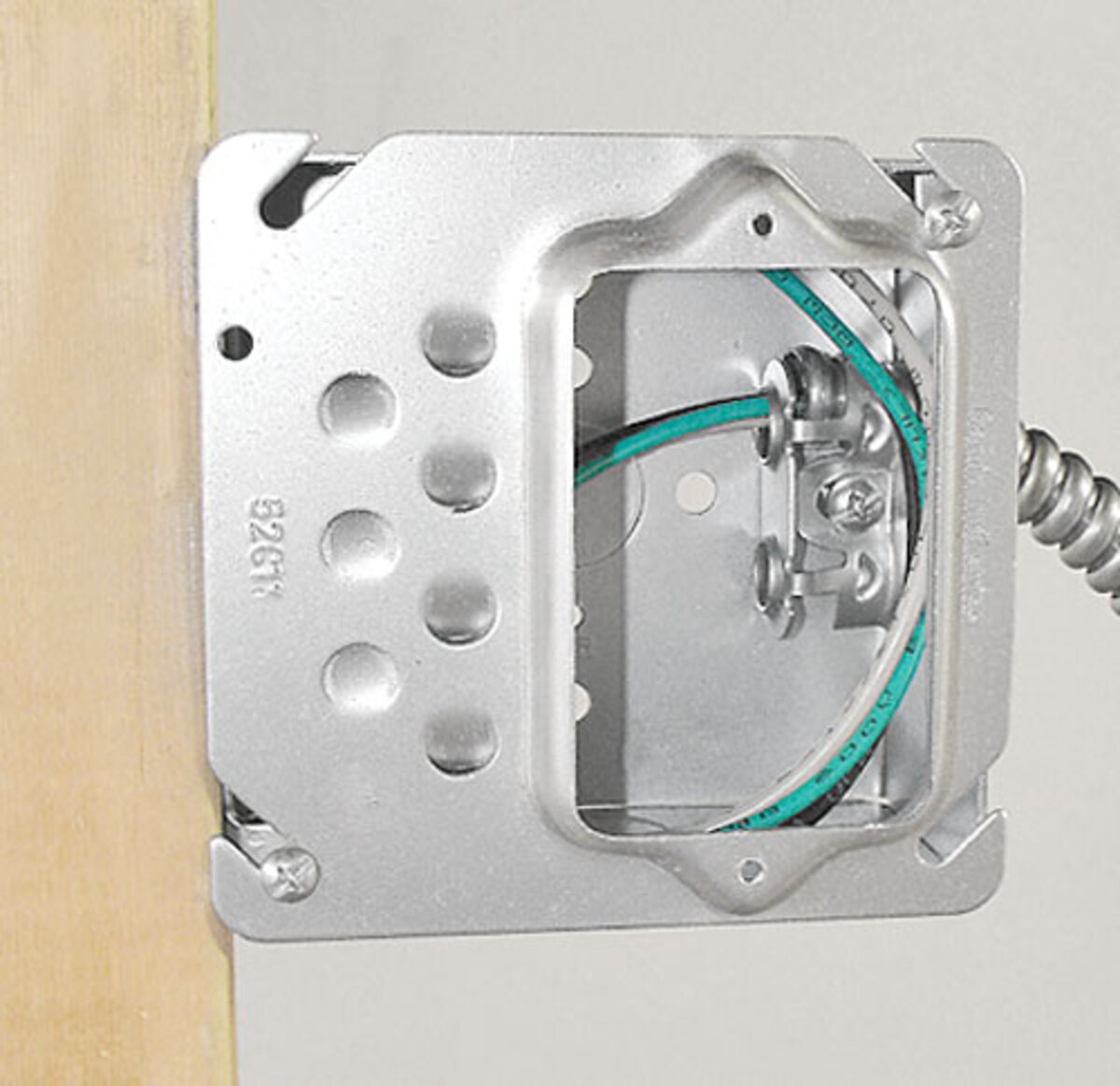

4" square single device rings are used with 4" square boxes to mount switches, receptacles and devices.

Where to Buy

Download Category Specifications

Excel Table

4" Square Single Gang Offset Device Ring - Raised 1/2"

Features & Benefits

Offset device ring design positions wiring device away from finish trim moldings
Angled slots on the covers compensate for up to 12 degrees of box misalignment on upright framing members
UL, CUL, RoHS Compliant

Specifications

Model #	52C11 52C11
UPC #	785592400871 785592400871
Product Height	0.5 1.27	inch cm
Product Width	4.0 10.16	inch cm
Product Weight	0.001 0.00	lbs kg
Material	Galvanized Steel Galvanized Steel
Cubic Capacity	3.5 (57.3) 3.5 (57.3)
Standard Package	25 25
Color	Silver Silver

Resources

52C11-diagram.pdf

What is the purpose for the holes on the side?

Asked by: AaronD7456

Hi there, and thanks for reaching out! We'd like to hear more about your question, so that we can ensure that we're providing the most accurate answer. Please reach out to our dedicated team at consumersupport@southwire.com and we'll be happy to help.

Answered by: Southwire Care Team

Date published: 2026-05-09
