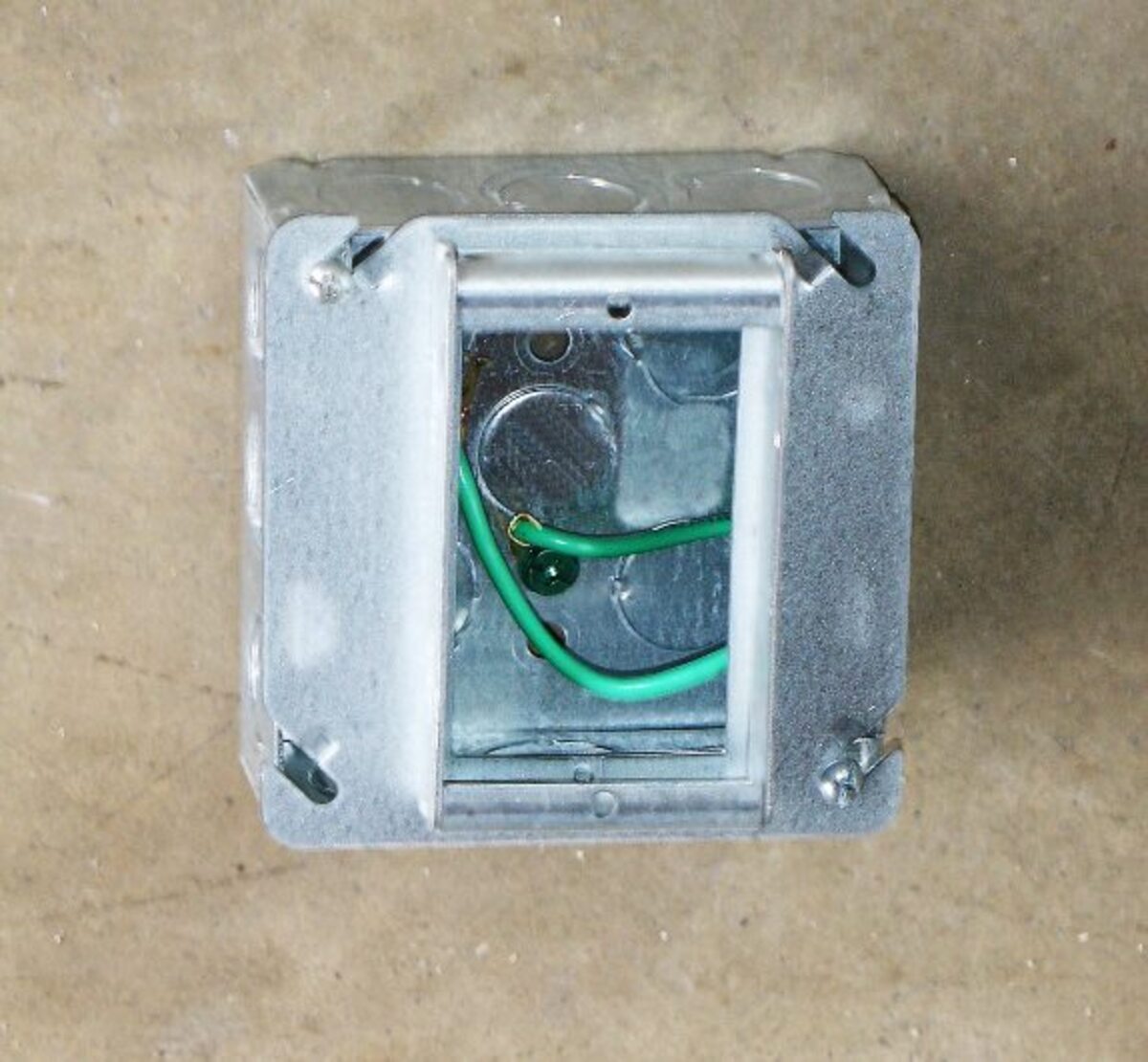

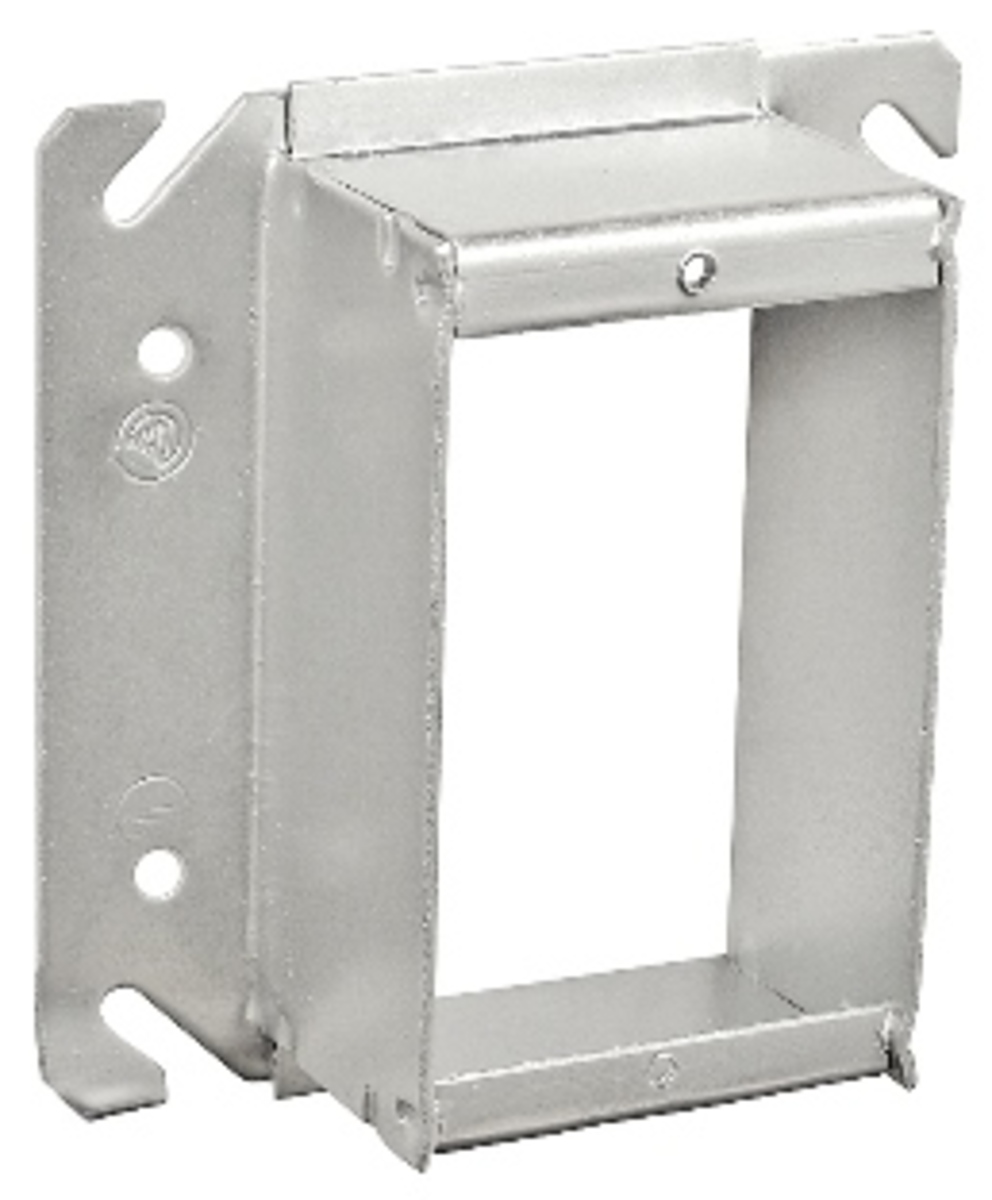

4" Square One Gang Device Tile Ring - 1-1/2" Raised

Southwire #: 52C22SQ Model #: 52C22SQ

4"square single device rings are used with 4" square boxes to mount switches, receptacles and devices. 90 degree square corners allow for easy, clean tile installation.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • 90 degree, welded corners
  • Angled slots on the covers compensate for up to 12 degrees of box misalignment on upright framing members
  • UL, CUL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # 52C22SQ 52C22SQ
Model # 52C22SQ 52C22SQ
UPC # 785592115911 785592115911
Product Height 1.5 3.81 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.12 0.05 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 11.3 (185.2) 11.3 (185.2)
Standard Package 25 25
Color Silver Silver
