4" Square Device Ring Voltage Partition

Southwire #: LVP41D Model #: LVP41D In Stock

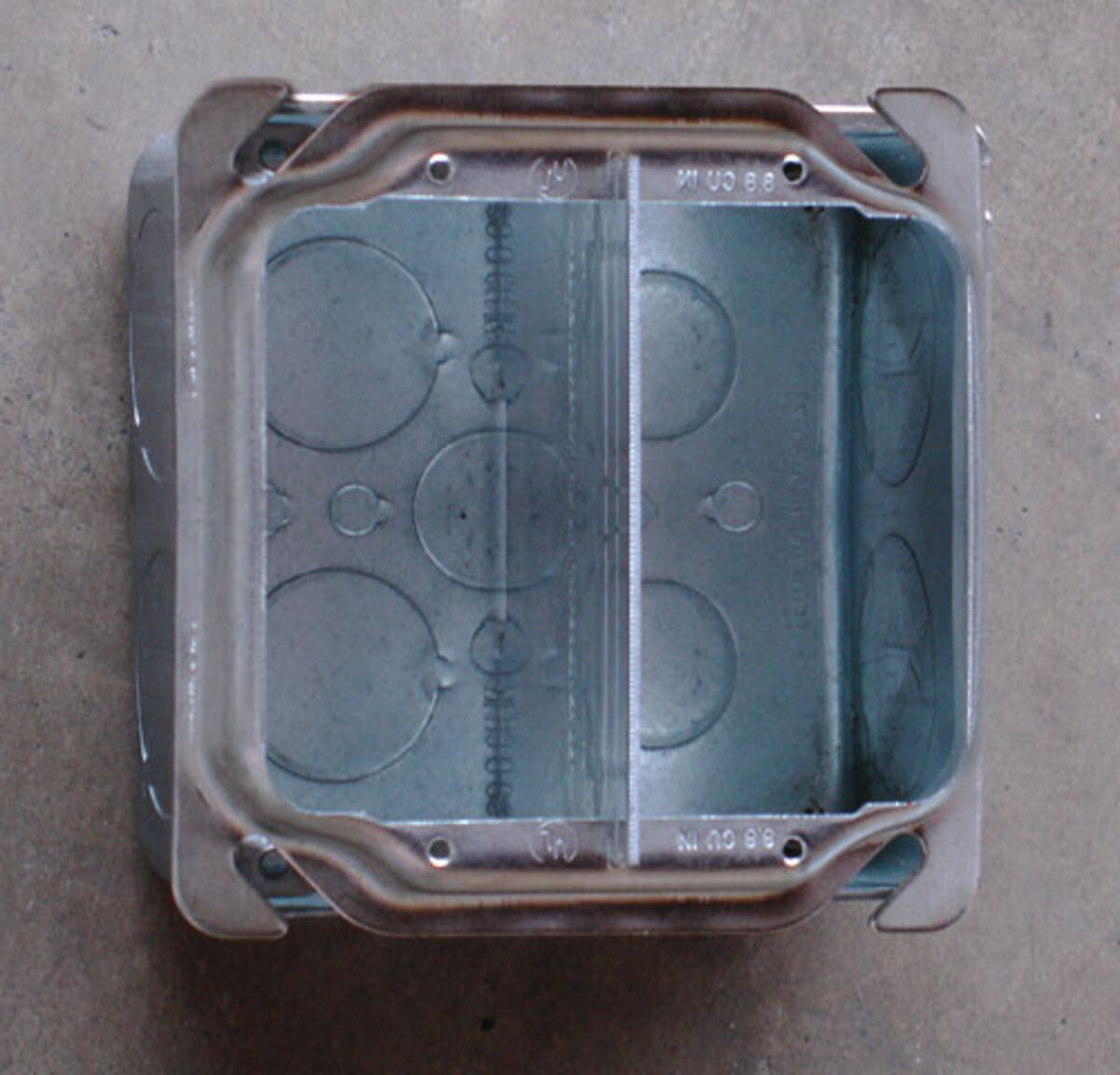

Device partitions are used when low voltage and power devices are installed next to each other in one 4" square box. Paritions separate line voltage and low voltage into their own compartments, preventing any harmful interference that power devices can induce in low voltage devices that are installed next to them.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

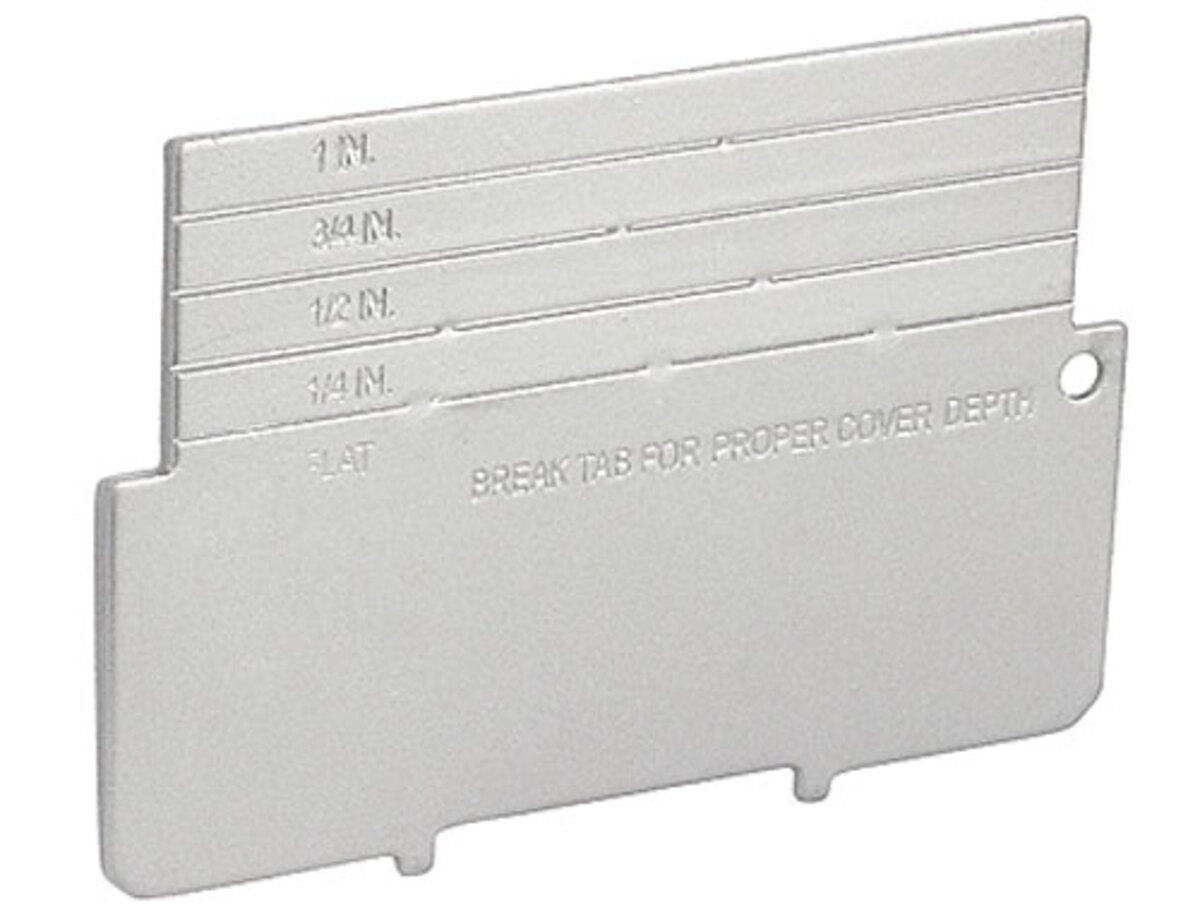

  • Score lines guide for proper fit with device ring
  • To prevent breaking off too many scored tabs it is recommended that the partition is in place in the box before the scored tab is broken off
  • For Use with 2-1/8" Deep Boxes
  • For Raised Rings: 1/2", 3/4" and 1"

Specifications

measurement
imperial metric
Stock # LVP41D LVP41D
Model # LVP41D LVP41D
UPC # 785592990273 785592990273
Product Height 0.06 0.15 inch cm
Product Width 3.82 9.70 inch cm
Product Weight 0.6 0.27 lbs kg
Material Galvanized Steel Galvanized Steel
Standard Package 5 5
Color Silver Silver
