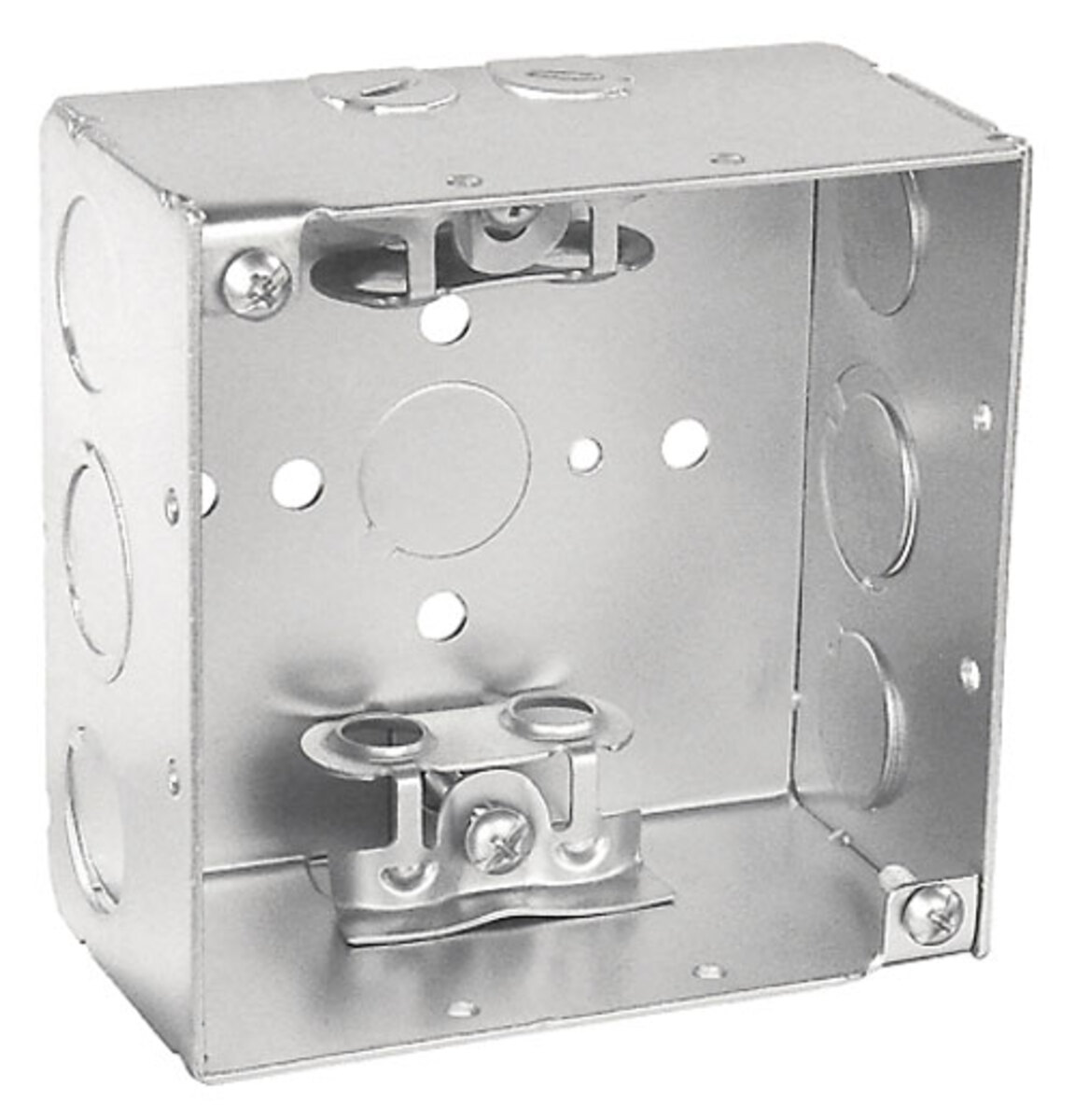

4" Square Box, 2-1/8" Deep - Welded, W/Mc/Bx Clamps
Southwire #: 52171-BX
Model #: 52171-BX
4" square boxes are used to distribute power to a number of electrical devices where multiple conductor runs are split into two or more directions.
Download Category Specifications
Excel Table
Register Product
Register Product
Features & Benefits
- Combination Phillips/Slotted screw heads.
- UL, CUL, RoHS Compliant
| Stock # | 52171-BX 52171-BX | |
| Model # | 52171-BX 52171-BX | |
| UPC # | 785592400734 785592400734 | |
| Product Height | 2.13 5.41 | inch cm |
| Product Width | 4.0 10.16 | inch cm |
| Product Weight | 1.06 0.48 | lbs kg |
| Material | Galvanized Steel Galvanized Steel | |
| Cubic Capacity | 30.3 (496.5) 30.3 (496.5) | |
| Standard Package | 25 25 | |
| Side Knockouts | (6) 1/2", (4) Pryouts (6) 1/2", (4) Pryouts | |
| Color | Silver Silver |
