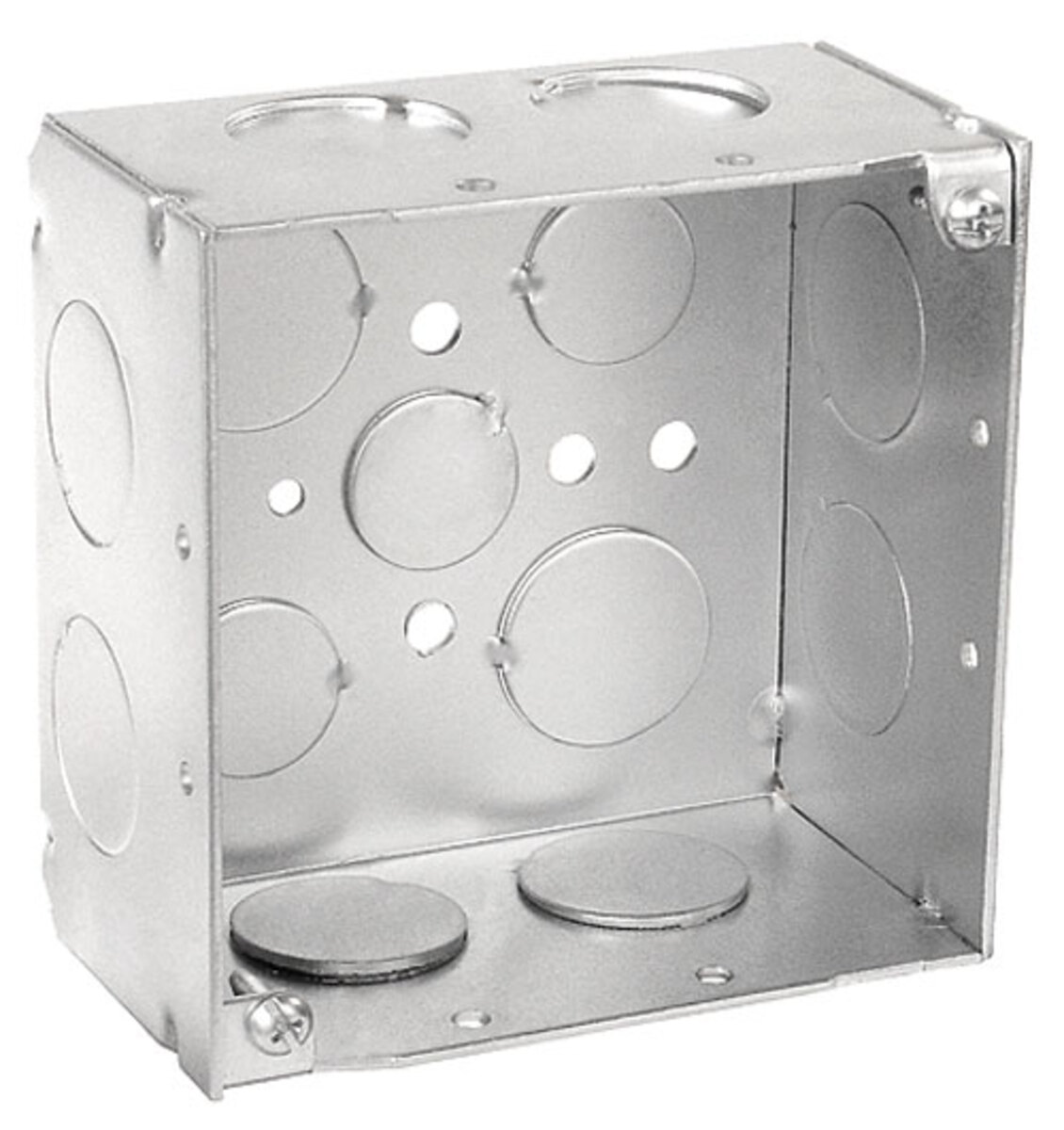

4" Square Box, 2-1/8" Deep - Welded, W/Conduit KO's

Southwire #: 52171-3/4-1 Model #: 52171-3/4-1

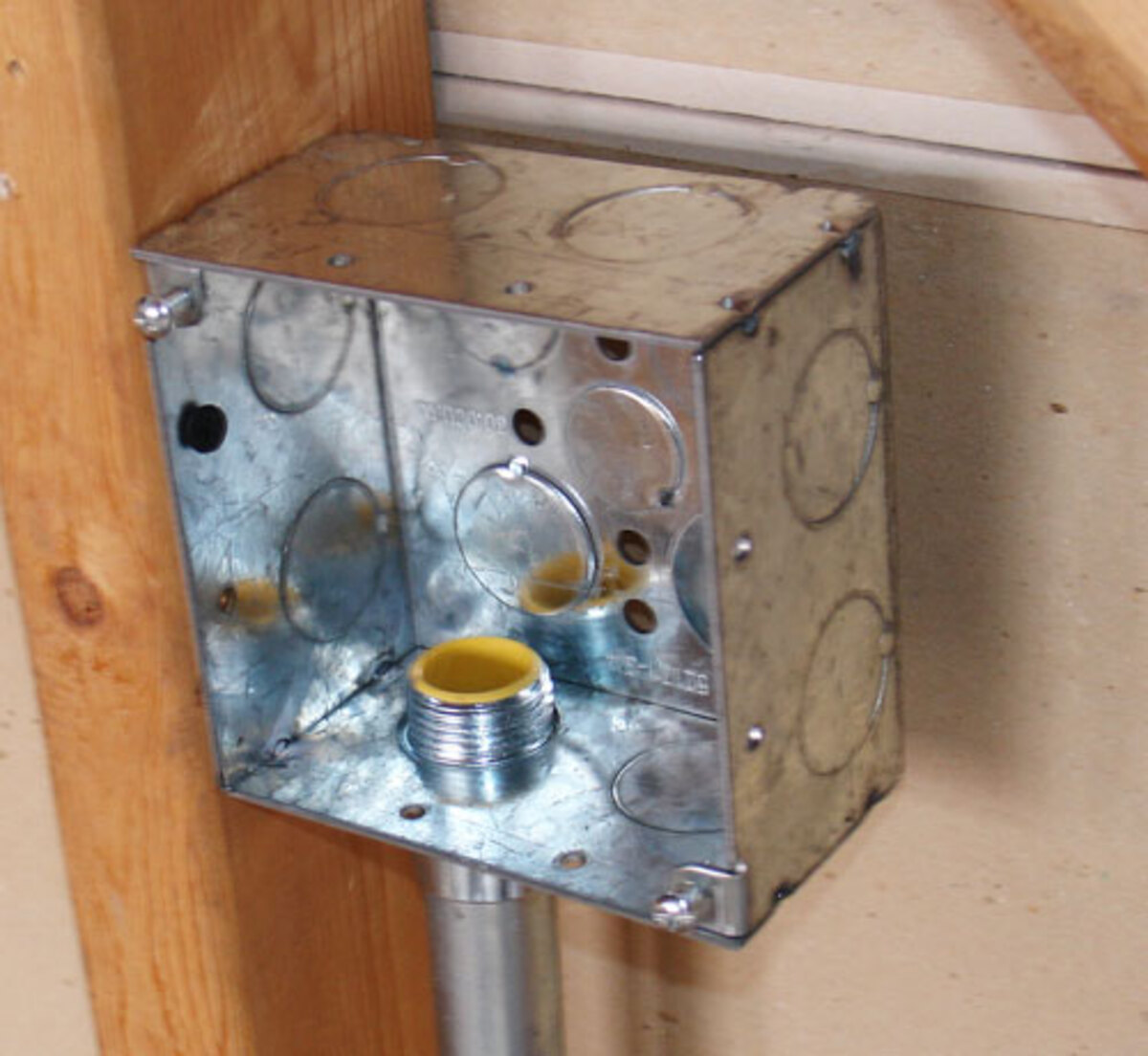

4" square boxes are used to distribute power to a number of electrical devices where multiple conductor runs are split into two or more directions.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Raised Ground
  • Combination Phillips/Slotted screw heads.
  • UL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # 52171-3/4-1 52171-3/4-1
Model # 52171-3/4-1 52171-3/4-1
UPC # 785592981479 785592981479
Product Height 2.13 5.41 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.75 0.34 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 30.3 (496.5) 30.3 (496.5)
Standard Package 10 10
Bottom Knockouts (6) 1/2", (4) 3/4" (6) 1/2", (4) 3/4"
Side Knockouts (4) 3/4", (4) 1" (4) 3/4", (4) 1"
Color Silver Silver
