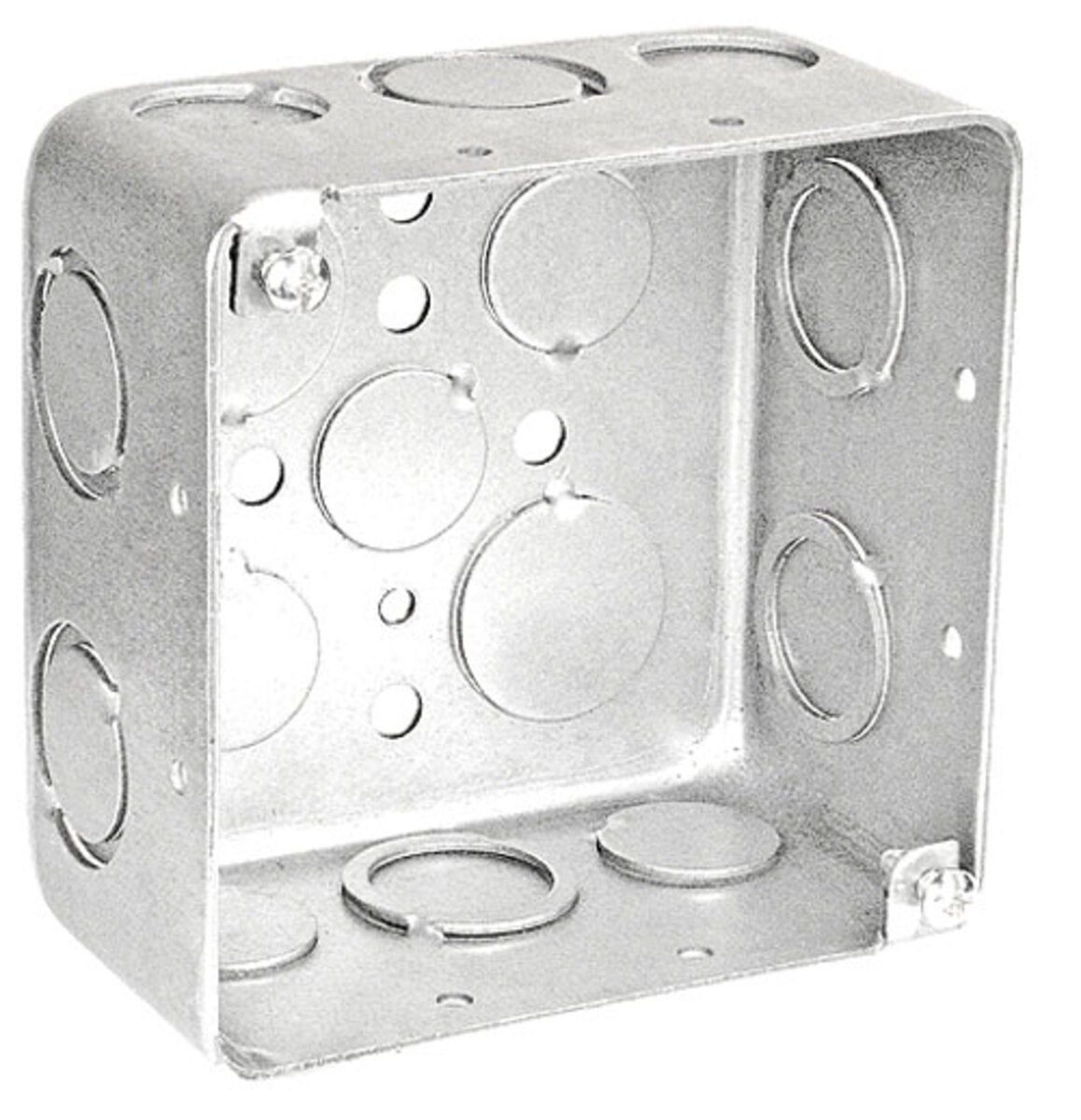

4" Square Box, 2-1/8" Deep - Drawn, W/Conduit KO's

Southwire #: 52171-SDR Model #: 52171-SDR

4" square boxes are used to distribute power to a number of electrical devices where multiple conductor runs are split into two or more directions.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Combination knockouts allow for greater wiring flexibility
  • Drawn design ideal for surface mounting.
  • Combination Phillips/Slotted screw heads.

Specifications

measurement
imperial metric
Stock # 52171-SDR 52171-SDR
Model # 52171-SDR 52171-SDR
UPC # 785592400796 785592400796
Product Height 2.13 5.41 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.88 0.40 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 30.3 (496.5) 30.3 (496.5)
Standard Package 20 20
Side Knockouts (6) 1/2", (6) 1/2" - 3/4" (6) 1/2", (6) 1/2" - 3/4"
Color Silver Silver
