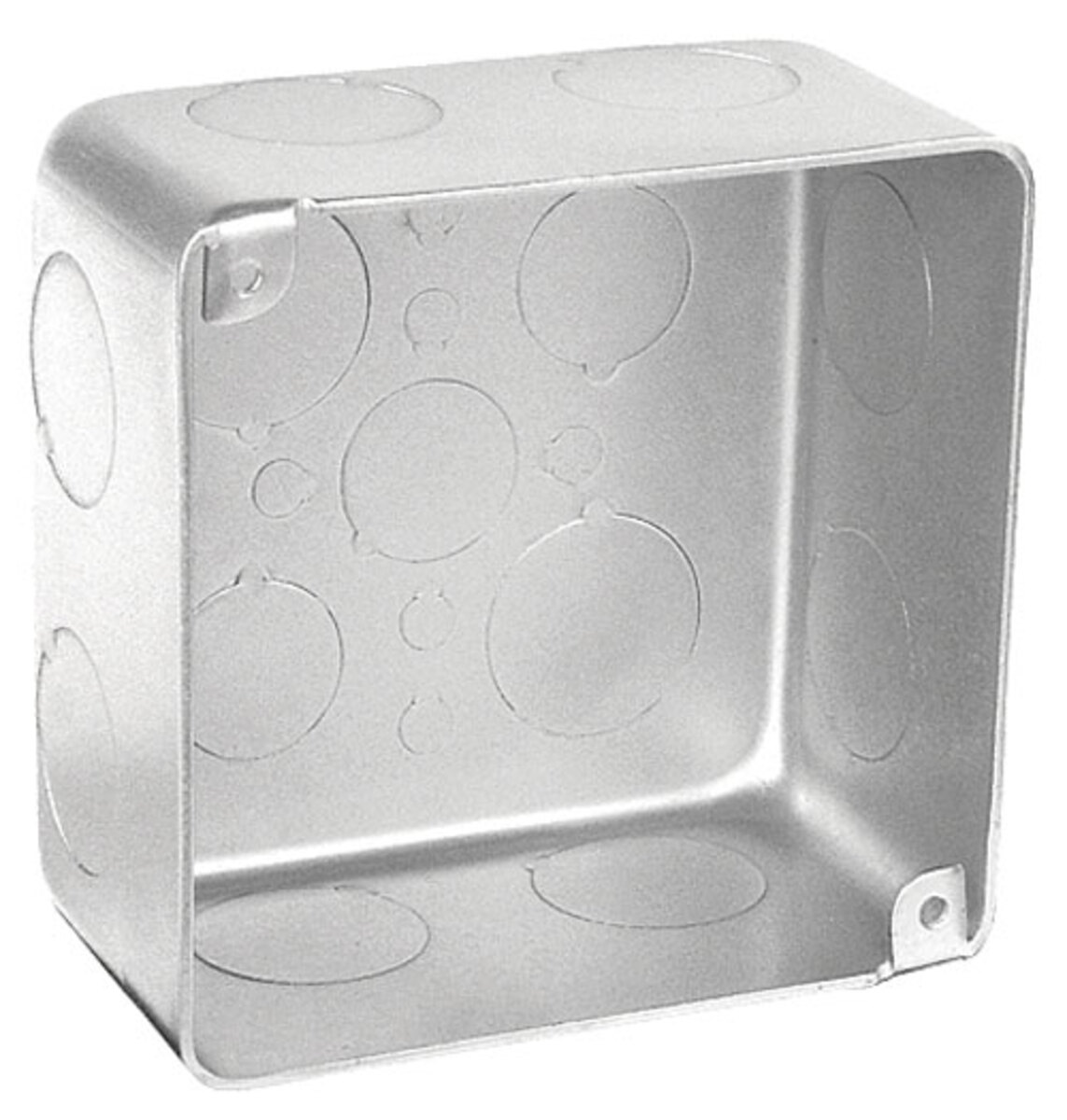

4" Square Box, 2-1/8" Deep - Drawn, W/Conduit KO's

Southwire #: 52171-3/4-VT Model #: 52171-3/4-VT

Plenum boxes are used in air-plenum wall or ceiling surfaces to install lighting fixtures, switches, receptacles or other outlet devices. Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Drawn construction with airtight knockouts and mounting/nail holes
  • Cover mounting screws included with plenum cover
  • UL, RoHS Compliant

Specifications

Stock # 52171-3/4-VT 52171-3/4-VT
Model # 52171-3/4-VT 52171-3/4-VT
UPC # 785592102706 785592102706
Product Height 2.13 5.41 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.78 0.35 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 30.3 (496.5) 30.3 (496.5)
Standard Package 25 25
Bottom Knockouts (3) 1/2", (2) 1/2" - 3/4" (3) 1/2", (2) 1/2" - 3/4"
Side Knockouts (8) 3/4" (8) 3/4"
Color Silver Silver
