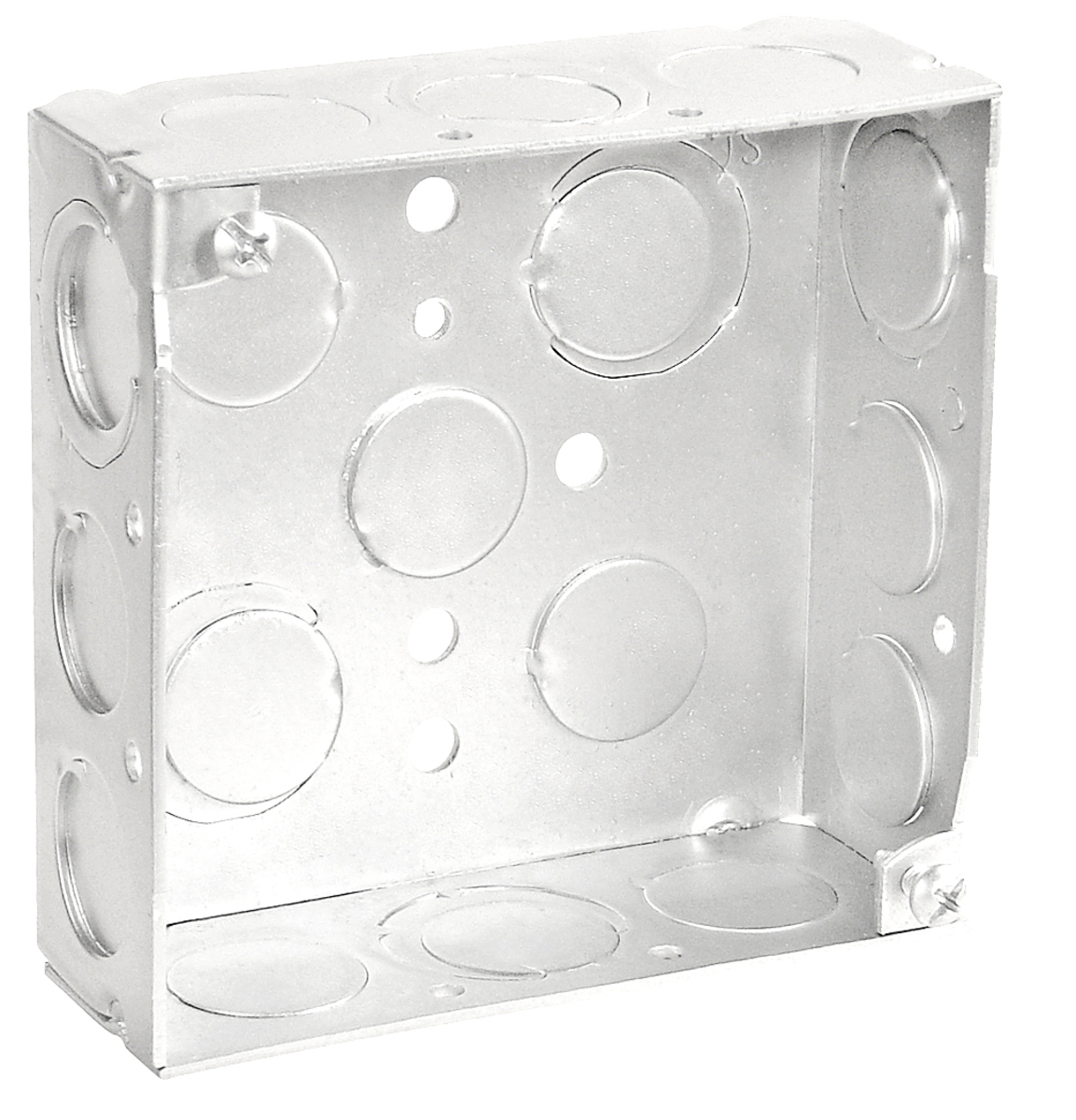

4" Square Box, 1-1/2" Deep - Welded, W/Conduit KO's
Southwire #: 52151-S
Model #: 52151-S
4" square boxes are used to distribute power to a number of electrical devices where multiple conductor runs are split into two or more directions.
Download Category Specifications
Excel Table
Register Product
Register Product
Features & Benefits
- Combination knockouts allow for greater wiring flexibility
- Combination Phillips/Slotted screw heads.
- For use with conduit
- 1-1/2 in. deep
- UL, RoHS Compliant
Specifications
| Stock # | 52151-S 52151-S | |
| Model # | 52151-S 52151-S | |
| UPC # | 785592521521 785592521521 | |
| Product Height | 1.5 3.81 | inch cm |
| Product Width | 4.0 10.16 | inch cm |
| Product Weight | 0.02 0.01 | lbs kg |
| Material | Galvanized Steel Galvanized Steel | |
| Cubic Capacity | 21.0 (344.1) 21.0 (344.1) | |
| Standard Package | 20 20 | |
| Bottom Knockouts | (16) 1/2", (4) 3/4" (16) 1/2", (4) 3/4" | |
| Side Knockouts | (8) 1/2", (4) 1/2" - 3/4" (8) 1/2", (4) 1/2" - 3/4" | |
| Color | Silver Silver |
