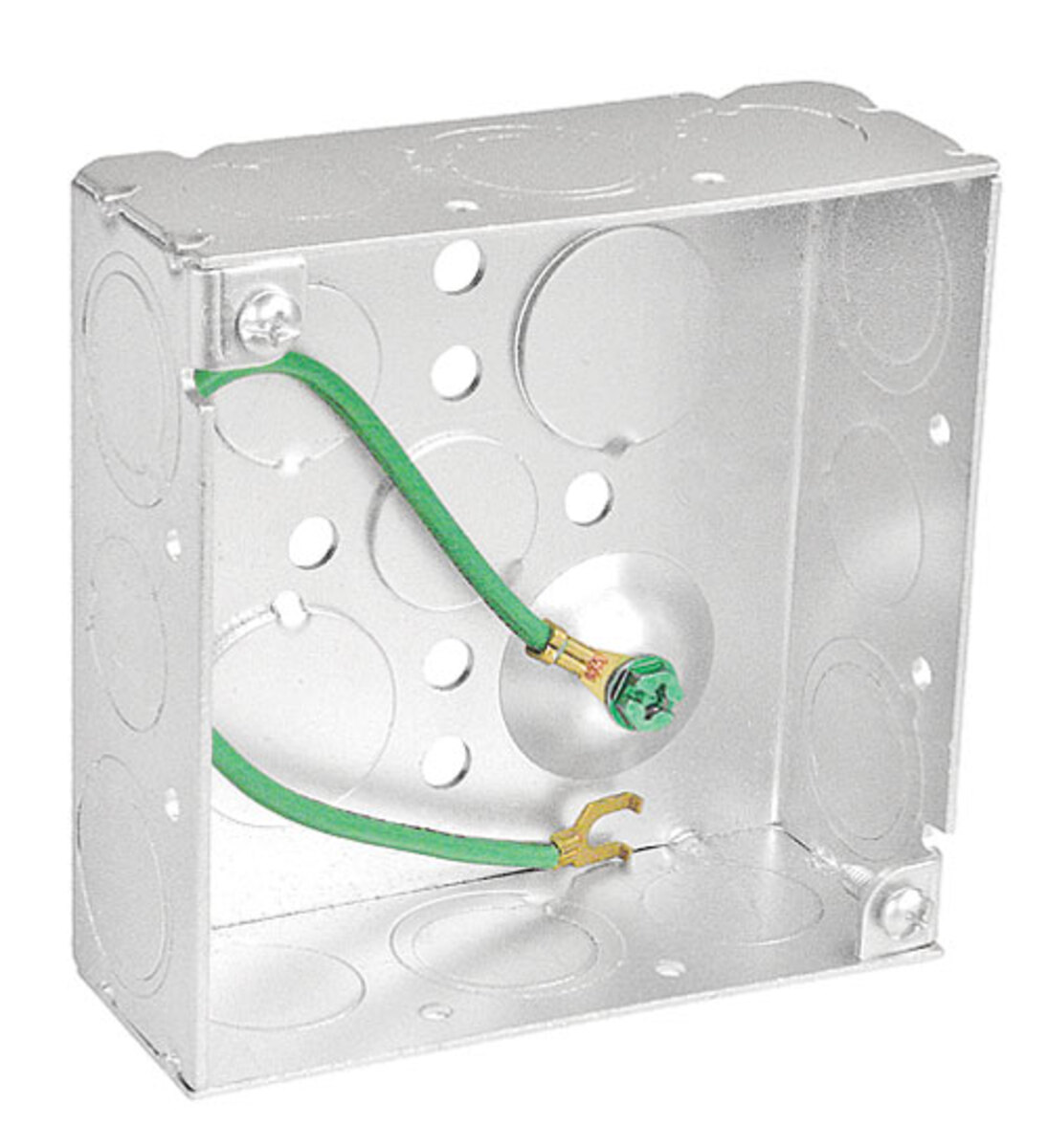

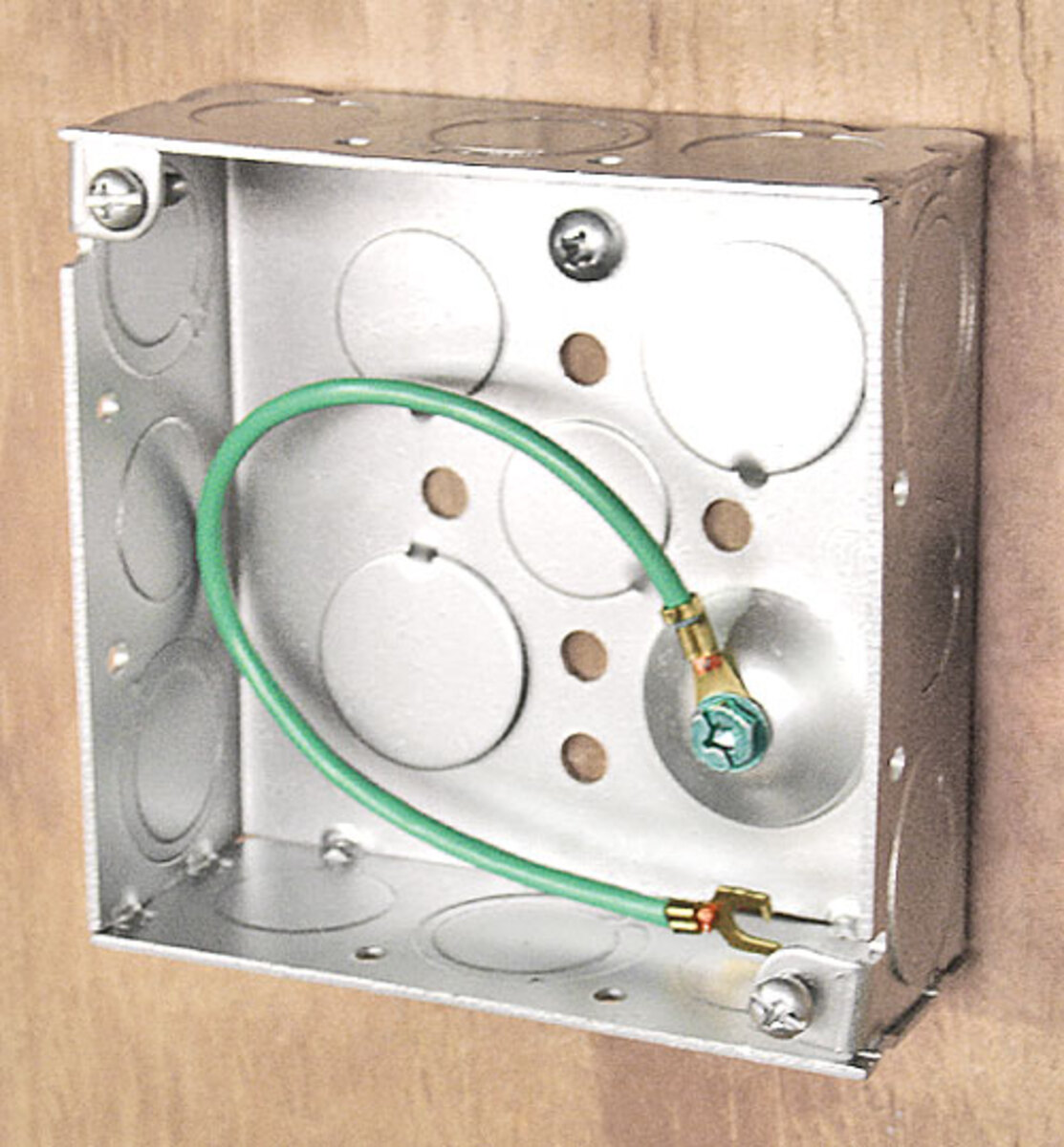

4" Square Box, 1-1/2" Deep - Welded, W/Conduit KO's And Pigtail

Southwire #: 52151-SPT Model #: 52151-SPT In Stock

4" square boxes are used to distribute power to a number of electrical devices where multiple conductor runs are split into two or more directions.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Combination knockouts allow for greater wiring flexibility
  • Raised Ground
  • Pre-installed 8" ground wire (12 ga) & 10-32 ground screw
  • Combination Phillips/Slotted screw heads.
  • UL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # 52151-SPT 52151-SPT
Model # 52151-SPT 52151-SPT
UPC # 785592981370 785592981370
Material Galvanized Steel Galvanized Steel
Cubic Capacity 21.0 (344.1) 21.0 (344.1)
Standard Package 5 5
Bottom Knockouts (6) 1/2", (4) 3/4" (6) 1/2", (4) 3/4"
Side Knockouts (8) 1/2", (4) 1/2" - 3/4" (8) 1/2", (4) 1/2" - 3/4"
Color Silver Silver
