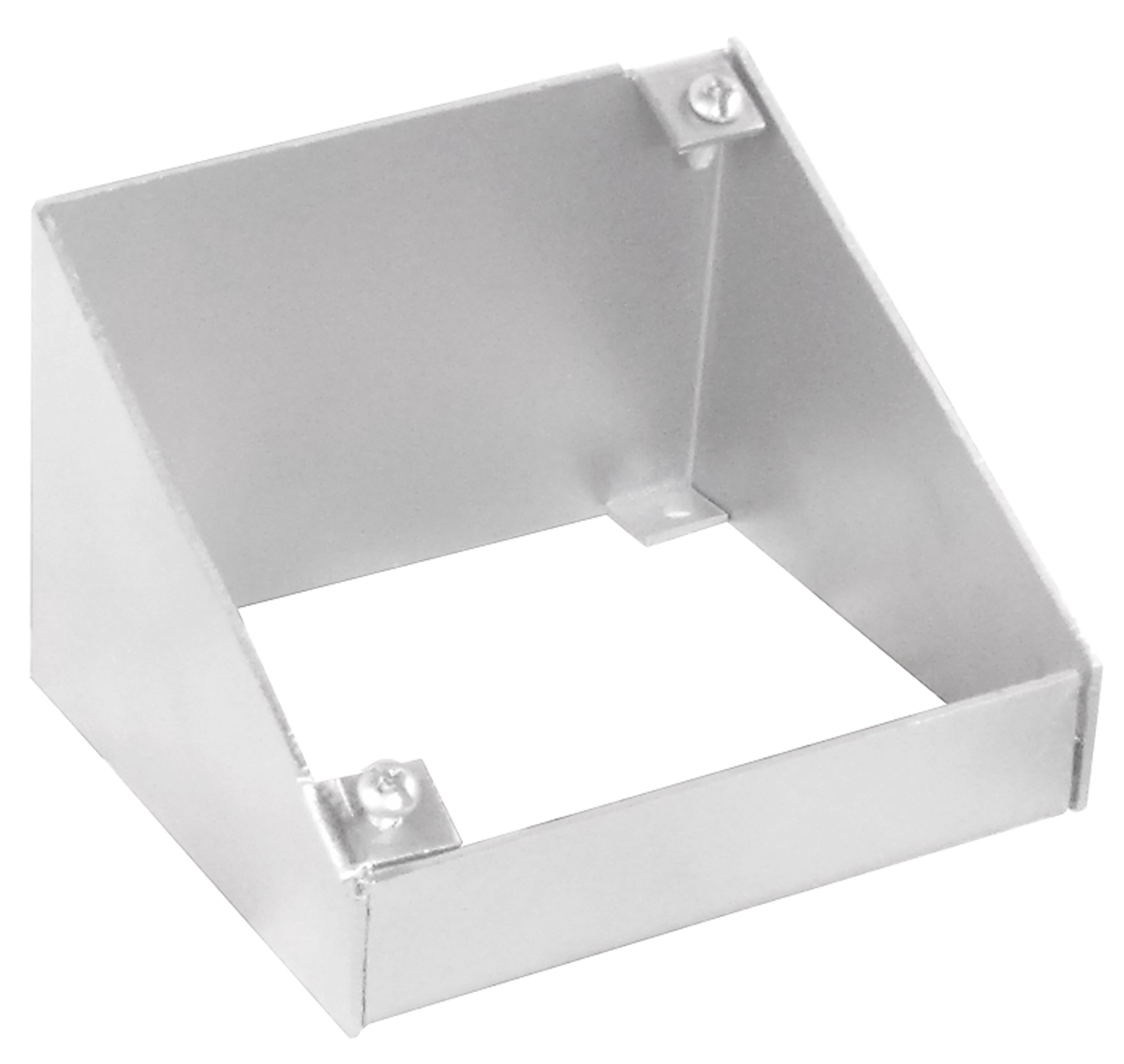

4" Square Angled Extension Ring, 2-1/8" Deep - Welded, No Knockouts

Southwire #: 53171-A45 Model #: 53171-A45

4" square extension rings are added to junction boxes to increase wiring capacity and provide access for additional conduit runs and electrical wire. Extension rings prevent the need to remove old conduit boxes and wiring from circuits when additional capacity is needed.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Blanks sides can be field punched or modified
  • Combination Phillips/Slotted screw heads.

Specifications

measurement
imperial metric
Stock # 53171-A45 53171-A45
Model # 53171-A45 53171-A45
UPC # 785592121745 785592121745
Product Height 2.84 7.21 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.38 0.17 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 21.0 (344.1) 21.0 (344.1)
Standard Package 25 25
Bottom Knockouts (2) 3/4", (3) 1/2" (2) 3/4", (3) 1/2"
Color Silver Silver
