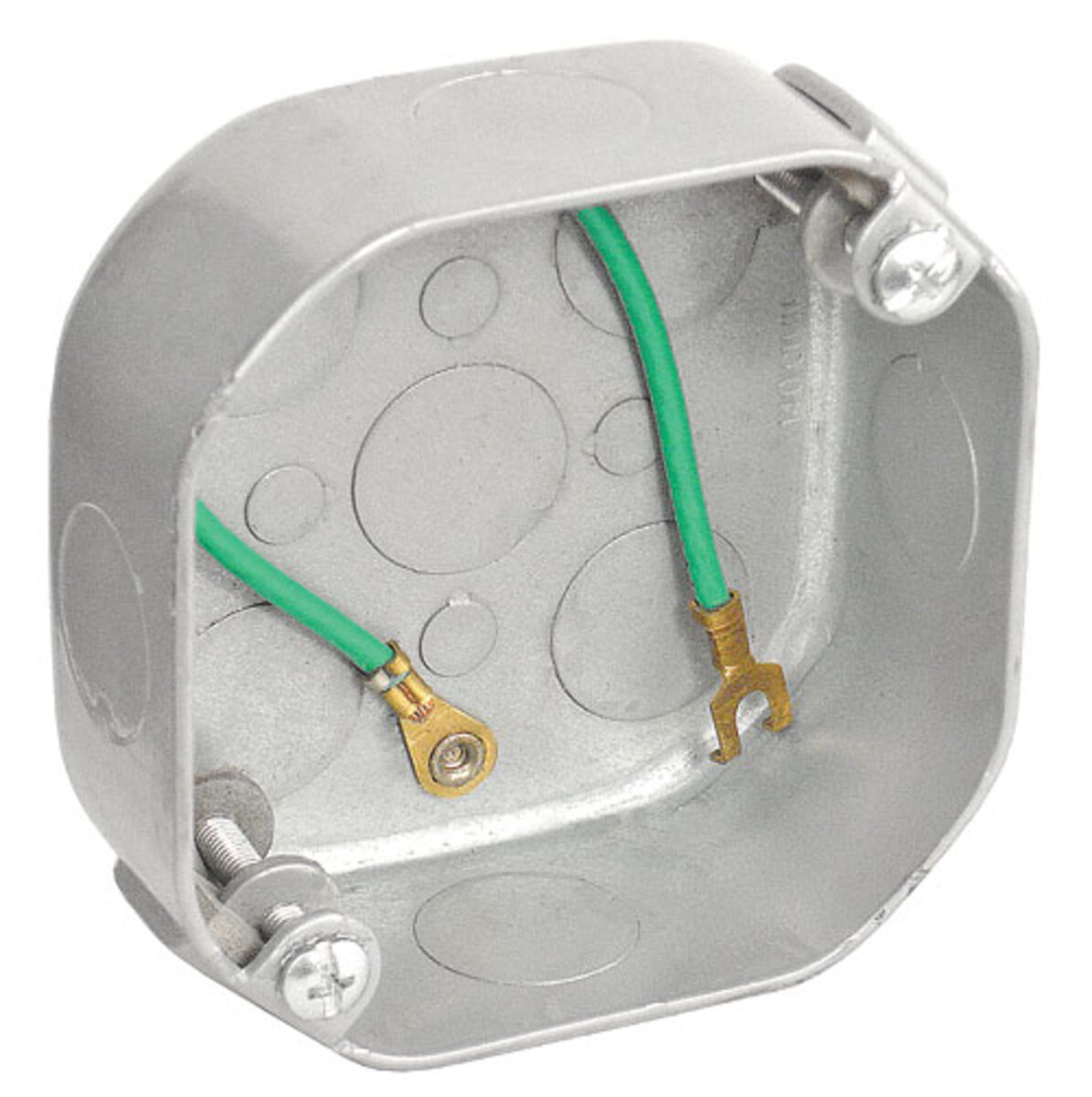

4" Octagon Ceiling Fan Box, 2-1/8" Deep - Drawn W/ Conduit KO's - Weatherproof

Southwire #: 54171-FANNBWP Model #: 54171-FANNBWP

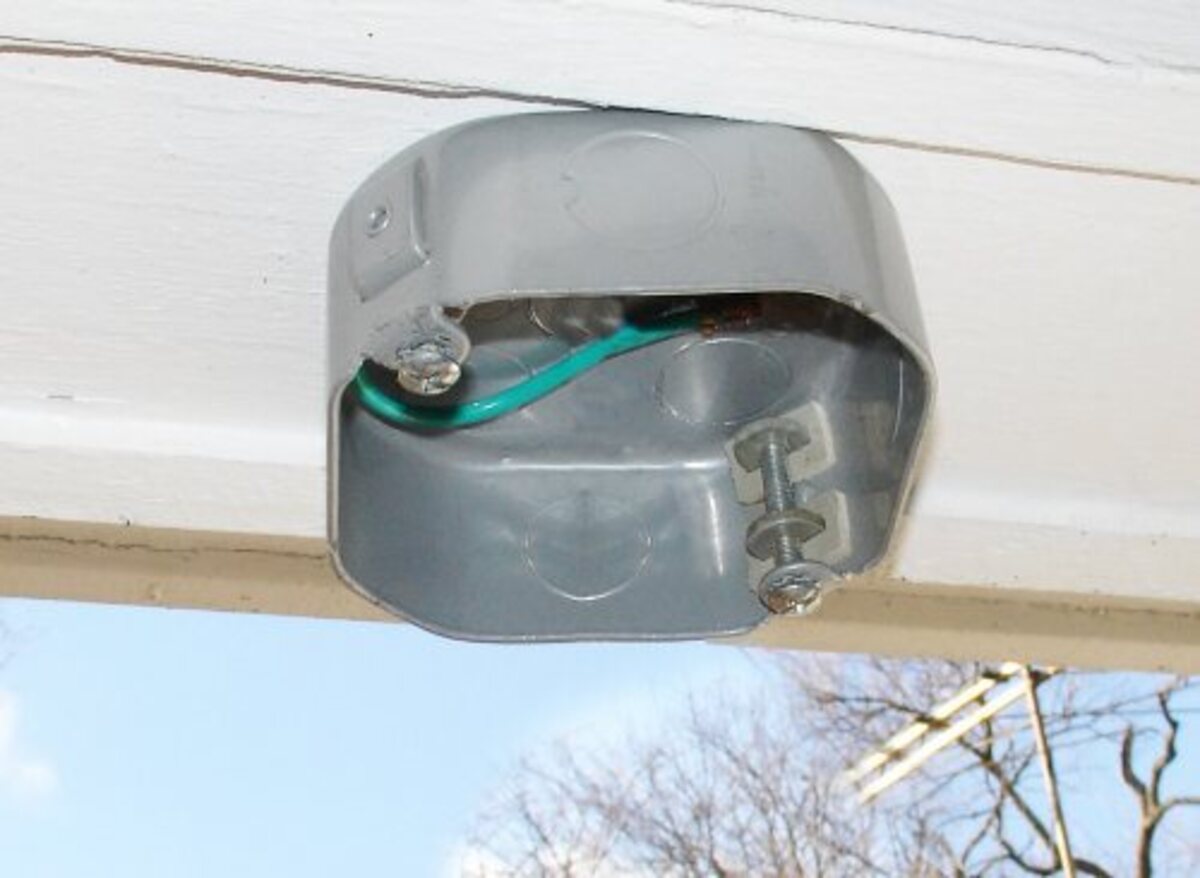

Ceiling fan rated octagon boxes are used to mount ceiling fans or heavy light fixtures.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Mounting hardware included
  • Tight knockouts and gasket for weatherproof installations
  • Static Fixture Max Load: 150 lbs
  • Ceiling Fan Dynamic Max Load: 70 lbs

Specifications

Stock # 54171-FANNBWP 54171-FANNBWP
Model # 54171-FANNBWP 54171-FANNBWP
UPC # 785592112545 785592112545
Product Height 2.13 5.41 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.63 0.29 lbs kg
Material Powder Coated Galvanized Steel Powder Coated Galvanized Steel
Cubic Capacity 20.0 (327.8) 20.0 (327.8)
Standard Package 25 25
Side Knockouts (4) 1/2" (4) 1/2"
Color Silver Silver
