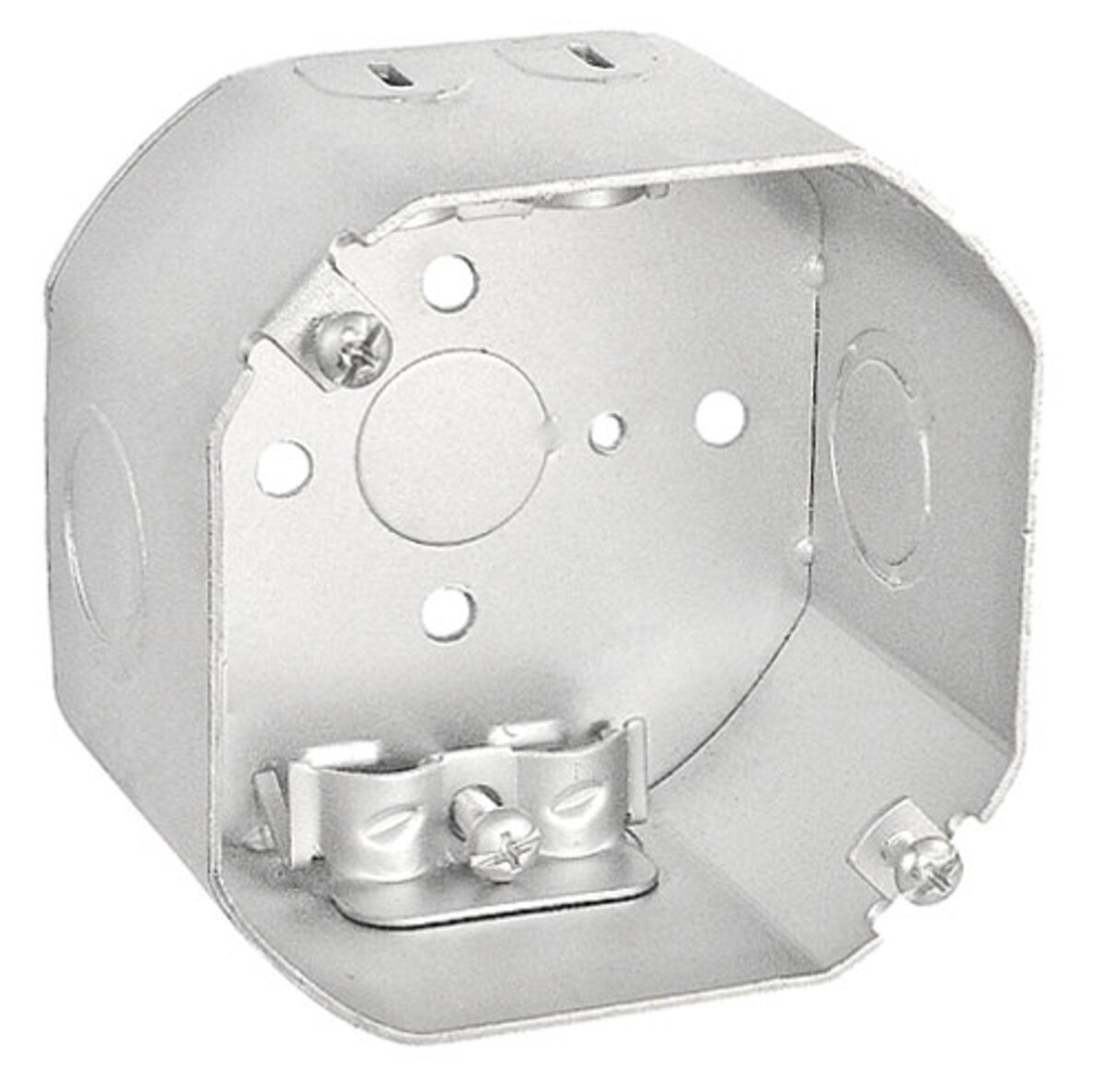

4" Octagon Box, 2-1/8" Deep - Drawn, W/Romex Clamps And Fixture Ears3-1/2" O.C.

Southwire #: 54171-R Model #: 54171-R

Write a Review

4" OCT BOX DRN 2-1/8" DP 1/2" KO NM CLMP

Where to Buy

Download Category Specifications

PDF Excel Table

4" Octagon Box, 2-1/8" Deep - Drawn, W/Romex Clamps And Fixture Ears3-1/2" O.C.

Features & Benefits

Combo-head fixture/cover mounting screws
Combination knockouts allow for greater wiring flexibility
UL, RoHS Compliant

Specifications

Model #	54171-R 54171-R
UPC #	785592982216 785592982216
Product Height	2.13 5.41	inch cm
Product Width	4.0 10.16	inch cm
Product Weight	0.695 0.32	lbs kg
Material	Galvanized Steel Galvanized Steel
Cubic Capacity	20.0 (327.8) 20.0 (327.8)
Standard Package	25 25
Bottom Knockouts	(1) 1/2" (1) 1/2"
Side Knockouts	(2) 1/2", (4) Pryouts (2) 1/2", (4) Pryouts
Color	Silver Silver

Resources

There are no downloadable resources for this product.

Rated 5 out of 5 by Dakotagino from Perfect size for deep spaces. The box dimensions made wiring junctions in a drop ceiling easy, bringing the opening down to the face of the tile. Other boxes were to shallow for the required box placement. We were able to fasten the box to the joist directly above the cutout.

Date published: 2025-02-04
