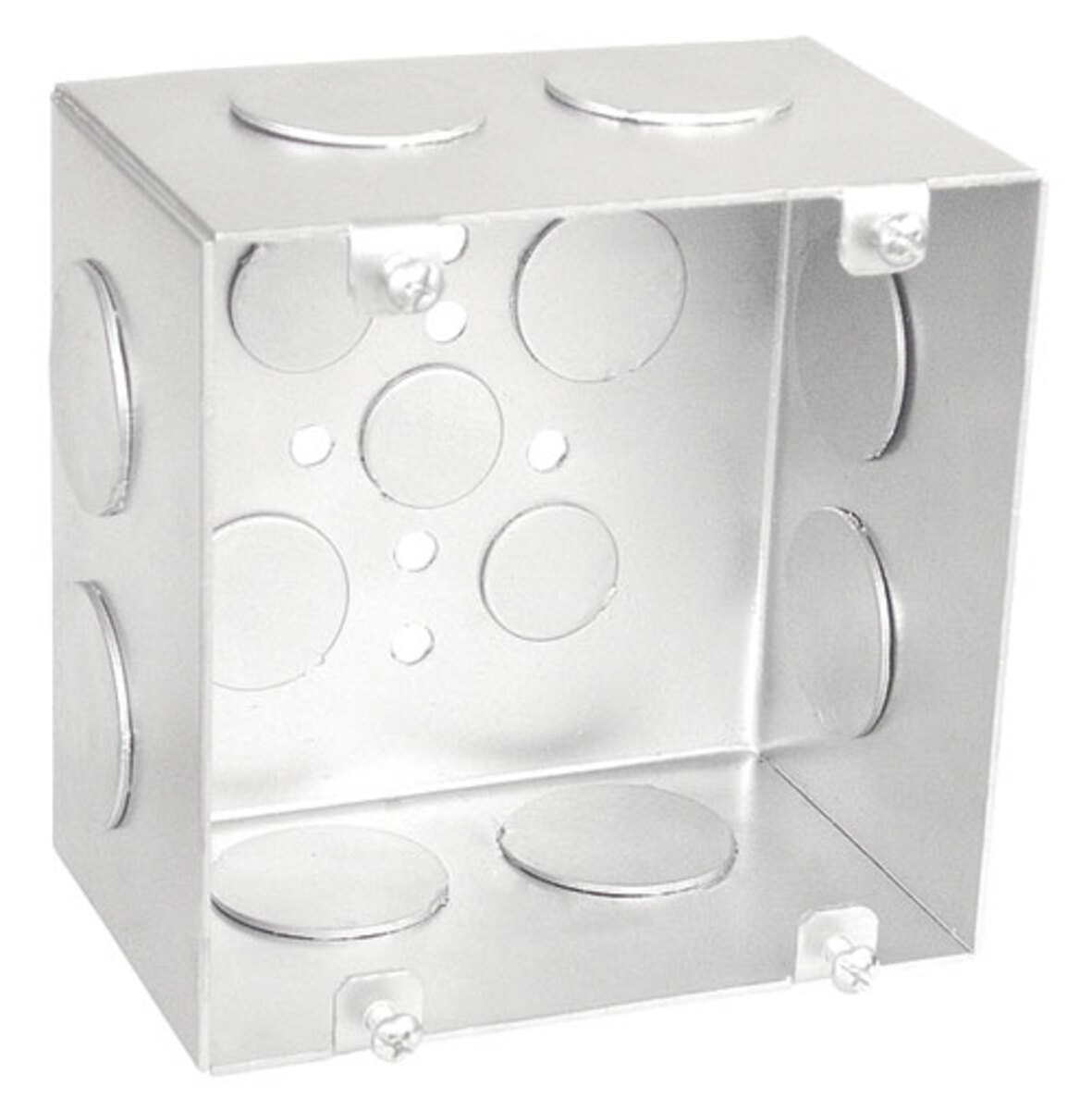

4-11/16" Square Box, 3" Deep - Welded, W/Conduit KO's

Southwire #: 72181-1-1/4 Model #: 72181-1-1/4

4-11/16 WELDED JUNCT BX 3 IN 1-1/4 IN KO

Download Category Specifications
PDF Excel Table
Register Product
Register Product

Features & Benefits

  • Raised Ground
  • 3" depth allows for additional wiring capacity.
  • Combination Phillips/Slotted screw heads.

Specifications

Model # 72181-1-1/4 72181-1-1/4
UPC # 785592982742 785592982742
Product Height 2.13 5.41 inch cm
Product Width 4.69 11.91 inch cm
Product Weight 0.95 0.43 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 60.0 (983.3) 60.0 (983.3)
Standard Package 10 10
Side Knockouts (8) 1-1/4" (8) 1-1/4"
Color Silver Silver
