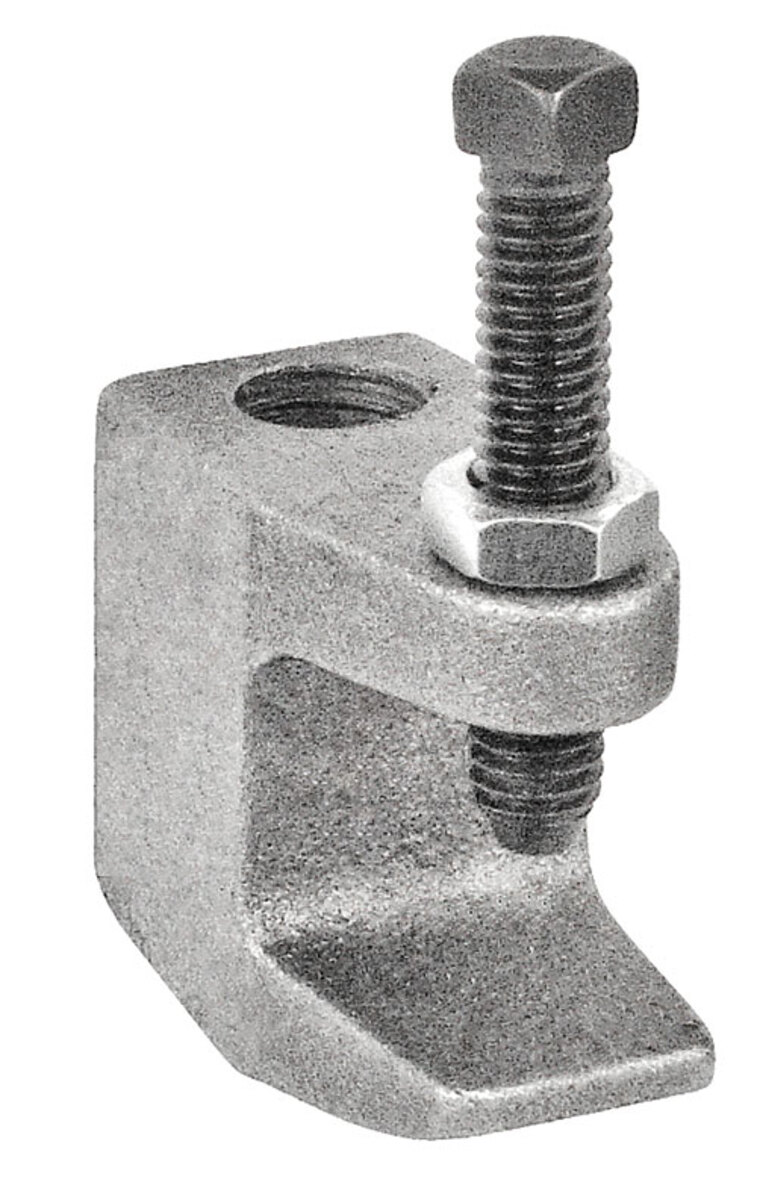

Reversible Beam Clamp W/ 1-1/4" Opening, 1/2-13 Threaded Hole, 25 Pack p-MFC-1213 MFC-1213

Southwire #: MFC-1213 Model #: MFC-1213

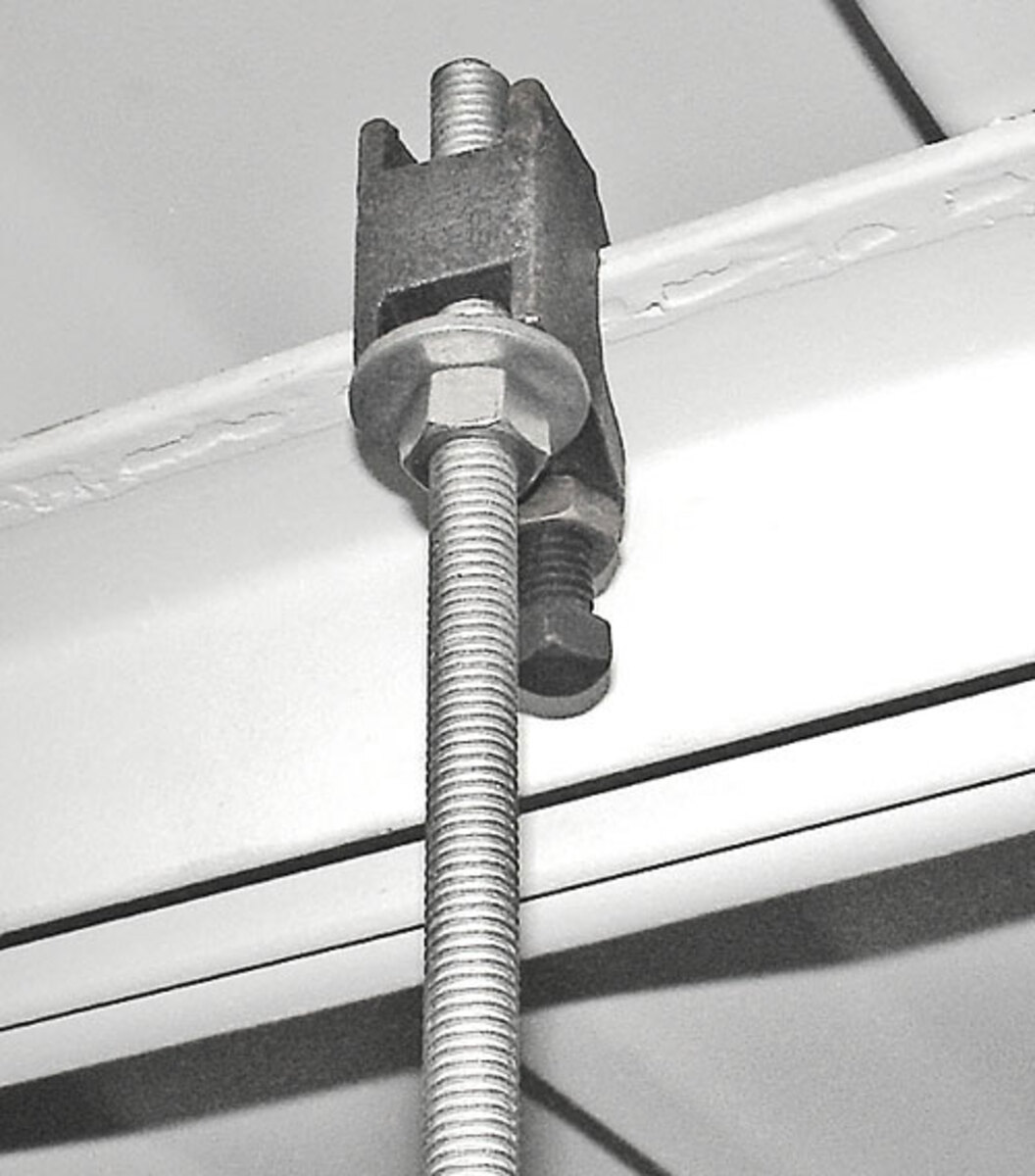

Reversible beam clamps are used when drop rod length needs to be adjusted to accommodate the field installation finished height

Where to Buy

Download Category Specifications

Through-hole in beam clamps allows drop rod length adjustment
Hardened cup point set screws come with jam nuts to prevent vibratory loosening in industrial settings
Unfinished (black) malleable iron
UL Listed
Jaw Opening: 1-1/4"
Hole Thread: 1/2"-13
Static Load - Top Mount: 500
Static Load - Bottom Mount: 250
