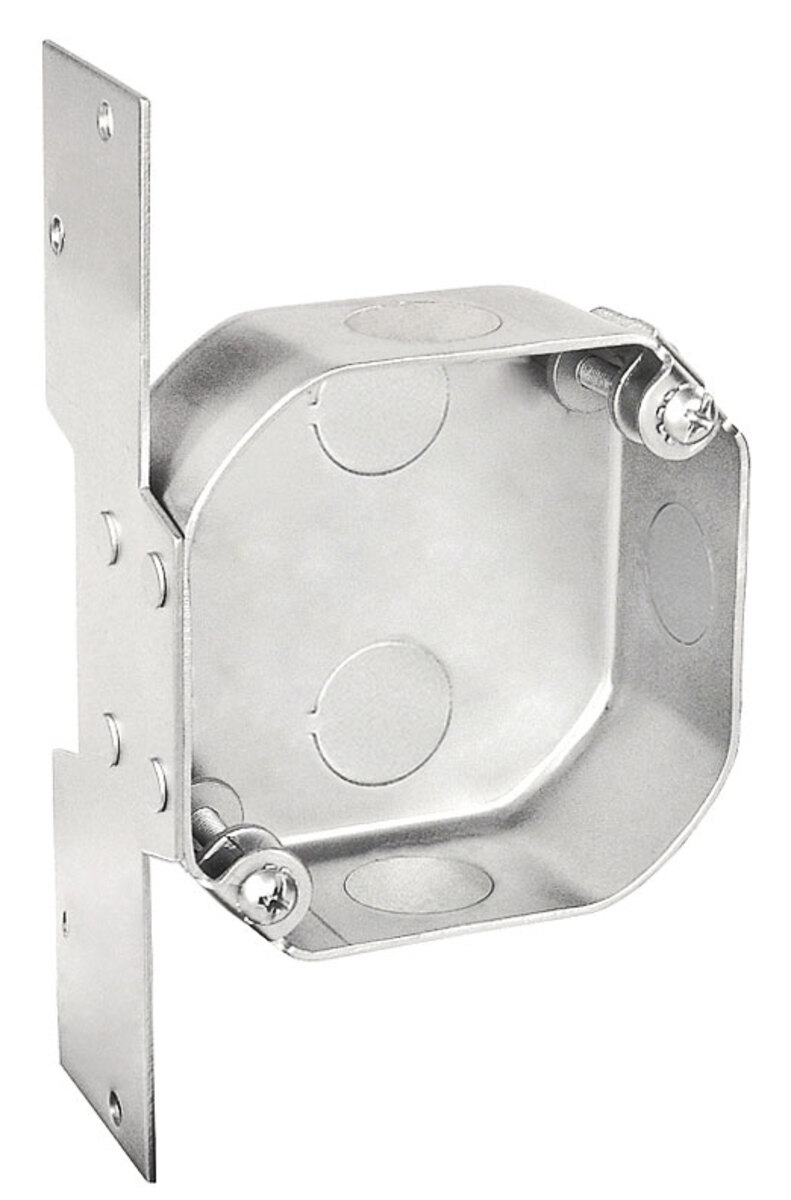

4" Octagon Bracketed Ceiling Fan Box, 1-1/2" Deep - Drawn W/ Conduit KO's - Weatherproof

Southwire #: 54151-FANWP Model #: 54151-FANWP

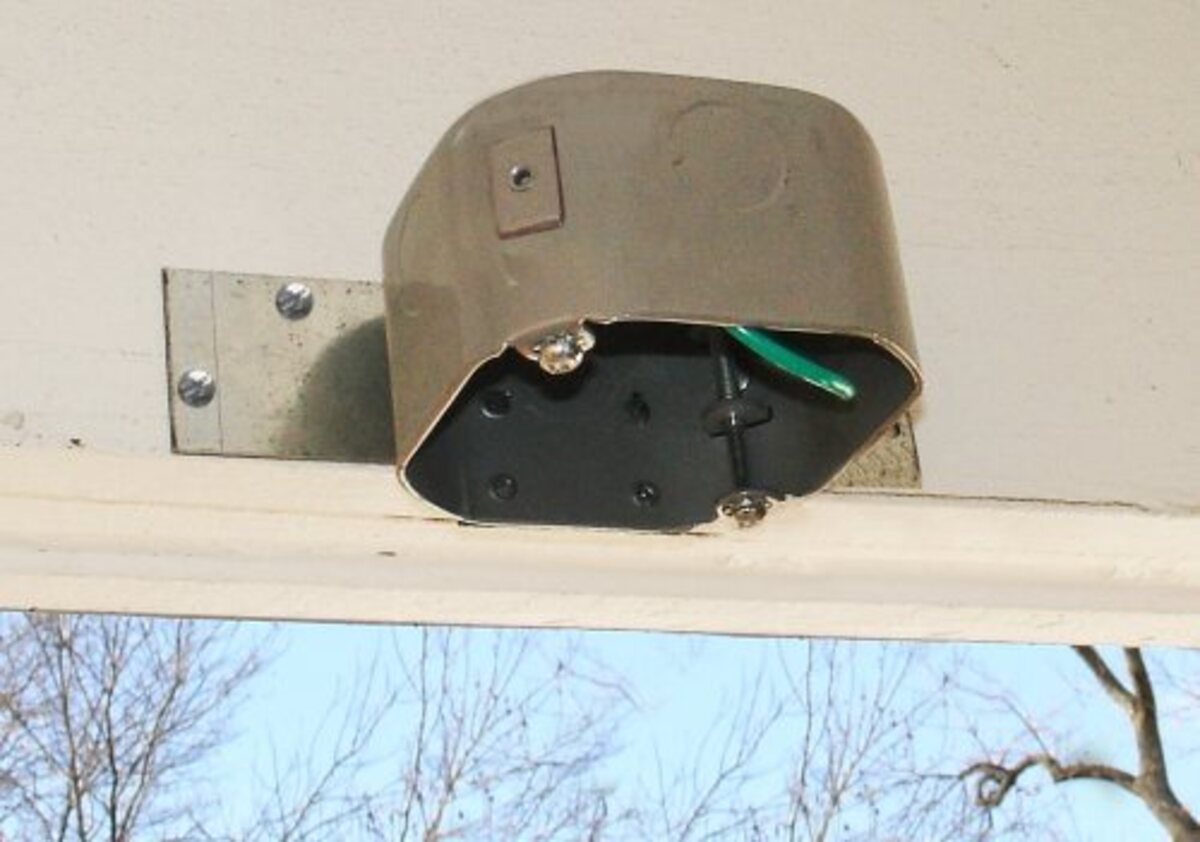

Ceiling fan rated octagon boxes are used to mount ceiling fans or heavy light fixtures.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Mounting hardware included
  • Tight knockouts and gasket for weatherproof installations
  • Static Fixture Max Load: 150 lbs
  • Ceiling Fan Dynamic Max Load: 70 lbs
  • Brackets: F - Flat Vertical

Specifications

Stock # 54151-FANWP 54151-FANWP
Model # 54151-FANWP 54151-FANWP
UPC # 785592999252 785592999252
Product Height 2.62 6.65 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 1.8 0.82 lbs kg
Material Powder Coated Galvanized Steel Powder Coated Galvanized Steel
Cubic Capacity 14.0 (229.5) 14.0 (229.5)
Standard Package 20 20
Side Knockouts (3) 1/2" (3) 1/2"
Color Silver Silver
