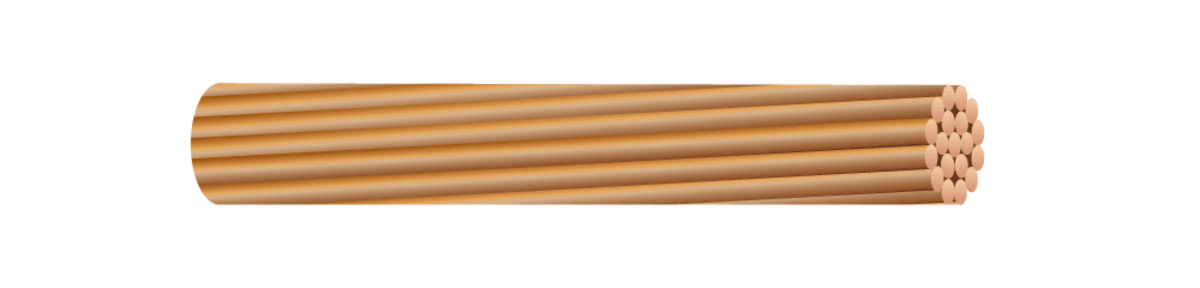

CU HARD DRAWN OVERHEAD CATENARY SYSTEMS MESSENGER WIRE
Messenger Wire for Transit Systems
Download Category Specifications
Excel Table
Application
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| 588744 | 0 0 | 500 KCMIL 500 KCMIL | 37 37 | 813 20.66 | 1544 2297 | ||||
| 588829 | 0 0 | 750 KCMIL 750 KCMIL | 61 61 | 998 25.35 | 2316 3446 | ||||
Standards & References
Construction
Resources
There are no downloadable resources for this product.
