CU 2000V EPR RHH/RHW-2 LSZH TRACTION POWER CABLE

CU 2000V EPR RHH/RHW-2 LSZH TRACTION POWER CABLE

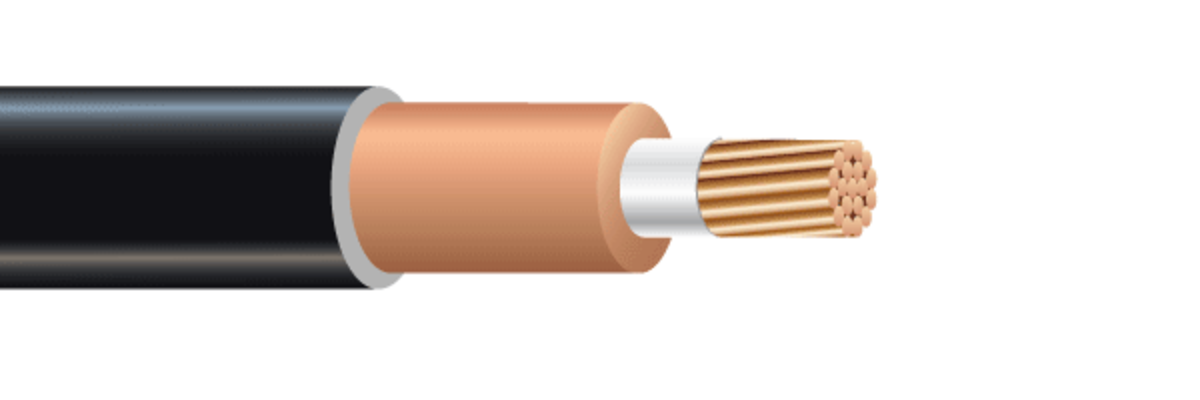

Traction Power Cable 2000 Volt Single Conductor Copper, Ethylene Propylene Rubber (EPR) insulation RHH/RHW-2 SOLONON® Low Smoke Zero Halogen (LSZH) Jacket
Download Category Specifications:
PDF Excel Table

Application

Specifications

measurement
imperial metric
Select a set of products below for more information:
Conductor Ground Wire
No. of Conductors Size (AWG or kcmil) No. of Strands Insulation Thickness (mils) (mm) Size (AWG) No. of Strands Nom. OD (mils) (mm) Nominal Total Weight (lbs/1000') (kgs/km) Allowable Ampacity
644487 0 0 350 KCMIL 350 KCMIL 37 37 65 1.65 944 23.98 1300 1934
890433 0 0 500 KCMIL 500 KCMIL 37 37 65 1.65 1063 27.00 1795 2671
647082 1 1 1000 KCMIL 1000 KCMIL 127 127 65 1.65 1450 36.83 3466 5158

Standards & References

Construction

Resources

There are no downloadable resources for this product.
