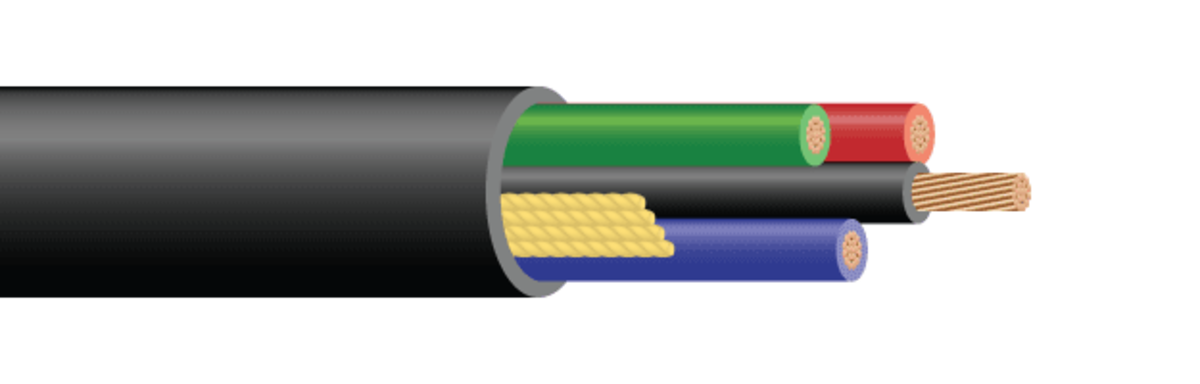

Southwire’s 600 Volt Type TC-ER control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Exposed runs (TC-ER) per NEC 336.10. VW-1 Rated.
|Stock #||56994489 56994489|
|No. of Conductors||19 19|
|Size (AWG or kcmil) (mm2)||18 AWG 18 AWG|
|No. of Strands||16 16|
|Insulation Thickness (mils) (mm)||15 0.38||mils mm|
|Nom. OD (mils) (mm)||552 14.02||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||208 309||lbs/1000' kgs/km|
