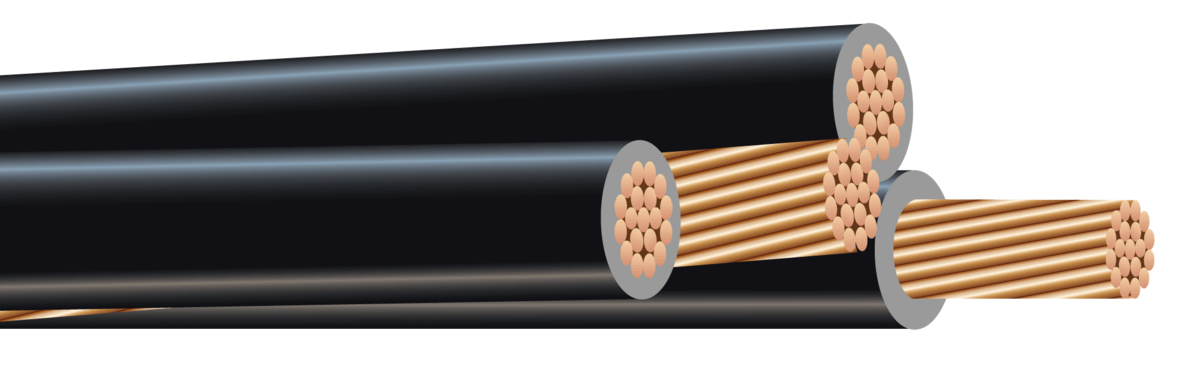

CU POLY QUADRUPLEX SERVICE DROP
Copper Conductors With Crosslinked Polyethylene Insulation.
Application
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 90°C for crosslinked polyethylene (XLP) insulated conductors.
Specifications
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) AWG or kcmil mm2 | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| 109884 |
4
4
|
4 AWG
4 AWG
|
7
7
|
45
1.14
|
|
|
760
19.31
|
568
845
|
|
| 109819 |
3
3
|
2 AWG
2 AWG
|
7
7
|
45
1.14
|
|
|
805
20.46
|
661
984
|
|
| 109918 |
4
4
|
2 AWG
2 AWG
|
7
7
|
45
1.14
|
|
|
900
22.87
|
889
1323
|
|
Standards & References
- ASTM B1 Hard-Drawn Copper
- ASTM B3 Standard Specification for Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ICEA S-76-474 Standard for Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600V
Construction
- Conductor: Conductors are stranded, compressed copper
- Insulation: Cross Linked Polyethylene (XLPE)
- Messenger: Hard Drawn Copper
Resources
There are no downloadable resources for this product.
