3/C CU 2000V Type G-GC RHINOFLEX™ CPE Mining Cable 90°C
Flexible Copper conductors, EPR insulation, Cu/Nylon Braid Shield, Extra Heavy Duty Two Layer Chlorinated Polyethylene (CPE) Jacket with Optional Reflective Stripes
Application
RHINOSHIELDTM Type SHD-GC is a heavy-duty trailing cable where flexibility and maximum protection is required. For use with mobile, reeling, or stationary mining equipment, continuous mining machines, longwall mining systems, and blast hole drillers. It is also an ex- cellent choice for shovels, draglines, dredges, cranes and marine shore-to-ship power supplies, and anytime extra-durable, flexible cable is required. Suitable for continuous submersion in water. Ground check conductor provides fail-safe ground monitoring. Embossed print legend for easy cable identification. Cold Bend and Impact Tested to -50°C.
Specifications
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) (mm2) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| 591266 |
3
3
|
8 AWG
8 AWG
|
168
168
|
60
1.52
|
10
10
|
|
1026
26.06
|
661
984
|
|
| 585557 |
3
3
|
6 AWG
6 AWG
|
133
133
|
|
10
10
|
|
1050
26.67
|
790
1175
|
|
| 585028 |
3
3
|
4 AWG
4 AWG
|
259
259
|
|
8
8
|
|
1190
30.23
|
1015
1510
|
|
| 585725 |
3
3
|
2 AWG
2 AWG
|
308
308
|
60
1.52
|
7
7
|
|
1325
33.66
|
1414
2104
|
|
| 585726 |
3
3
|
2/0 AWG
2/0 AWG
|
324
324
|
80
2.03
|
4
4
|
|
1636
41.55
|
2402
3574
|
|
| 576054 |
3
3
|
4/0 AWG
4/0 AWG
|
532
532
|
80
2.03
|
1
1
|
|
2310
58.67
|
4408
6560
|
|
| 590199 |
3
3
|
250 KCMIL
250 KCMIL
|
608
608
|
|
2
2
|
|
2390
60.71
|
4387
6528
|
|
| 587531 |
3
3
|
350 KCMIL
350 KCMIL
|
855
855
|
|
|
|
2680
68.07
|
5801
8633
|
|
Standards & References
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
- ICEA S-75-381 Portable and Power Feeder Cables for Use in Mines
- MSHA Approved

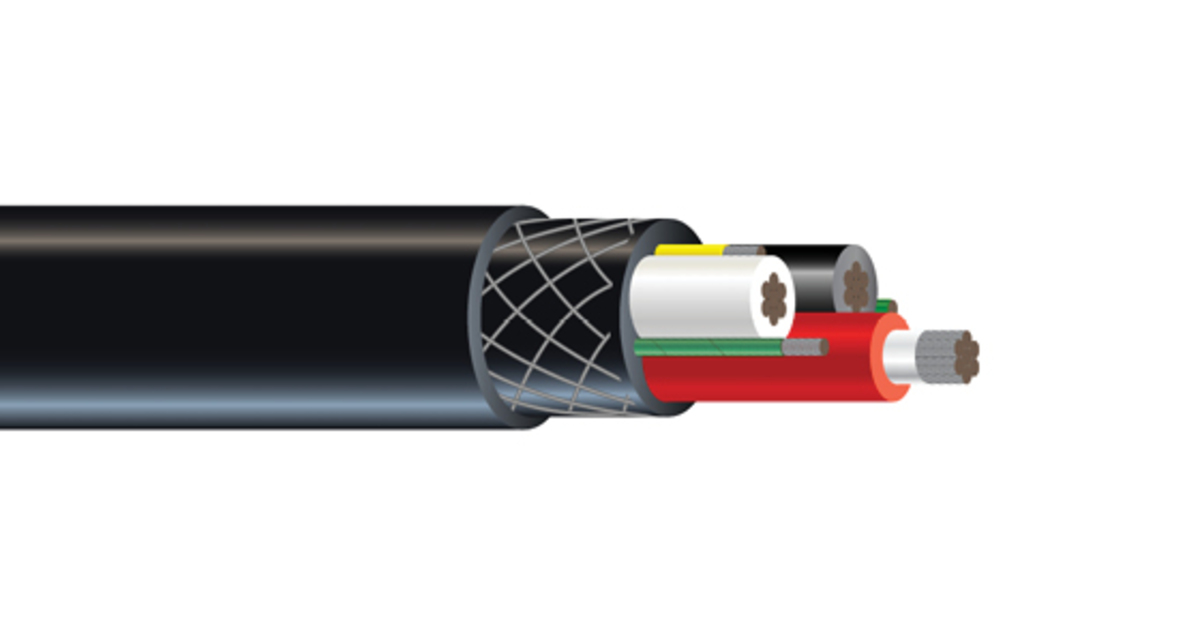

Construction
- Conductor:Tin coated, soft drawn, annealed, flexible, rope-lay stranded copper per ASTM B33/B172
- Separator Tape:Non-conducting tape applied between the conductor and insulation to facilitate stripping
- Insulation:Ethylene Propylene Rubber (EPR)
- Shield Separator:Non-conducting SBR tape applied to the phase insulation with a 50% overlap, adhesive side up
- Braid Shield:Tin coated, soft drawn, annealed, copper braid shield (60% minimum coverage), combined with color coded nylon (black, white, red) with a 40% maximum coverage
- Ground Check Conductor:Tin coated, soft drawn, annealed, rope stranded, flexible lay copper per ASTM B33/B172 with high strength yellow, polypropylene insulation
- Ground Conductors:Two uninsulated, tin coated, soft drawn, annealed, rope stranded, flexible lay copper per ASTM B33/B172
- Inner Jacket:Black, mold cured, extra heavy-duty integral fill, flame resistant, thermosetting Chlorinated Polyethylene (CPE)
- Reinforcement:Reinforcing twine applied between the two jacket layers
- Outer Jacket:Black, mold cured, extra heavy-duty, flame resistant, thermosetting Chlorinated Polyethylene (CPE). Alternate jacket colors available
- Reflective Stripe:Highly visible reflective stripe embedded into the outer jacket to increase safety and help prevent cable runover (optional, contact your sales representative for part number)
