400-4 STR CU THHN N/O/Y/A 2/0GG AIA MC 600V
Southwire #: 57994999

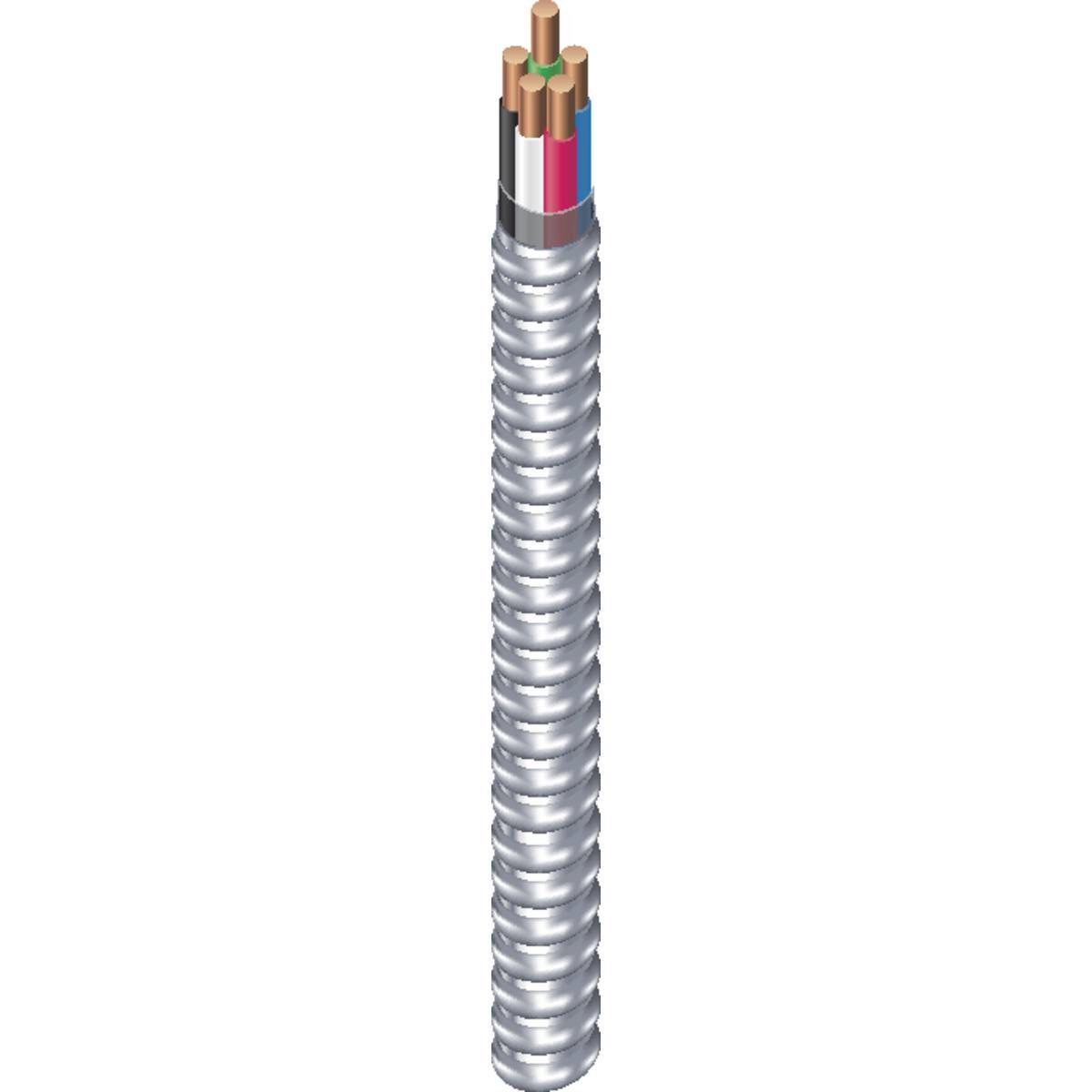

400/4 AWG Copper THHN Insulated Singles. Copper Grounding Conductor. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor.
Application
Suitable for use as follows:
- Feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
- Fished or embedded in plaster.
- Concealed or exposed installations.
- Environmental air-handling spaces per NEC 300.22 (C).
- Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
- Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
- Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
Specifications
| Stock # | 57994999 57994999 | |
| No. of Conductors | 4 4 | |
| Size (AWG or kcmil) (mm2) | 400 KCMIL 400 KCMIL | |
| No. of Strands | 37 37 | |
| Insulation Thickness (mils) (mm) | 60 1.52 | mils mm |
| Size (AWG) | 2/0 2/0 | |
| Nom. OD (mils) (mm) | 2591 65.82 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 6364 9470 | lbs/1000' kgs/km |
Standards & References
Southwire Armorlite® Type MC Cable meets or exceeds the following requirements:
- UL 83
- UL 1569
- UL 1685
- UL Online Product Guide Info - Metal-Clad Cable (PJAZ) ( www.ul.com )
- Federal Specification A-A59544 (formerly J-C-30B)
- Jacketed & Non Jacketed will both pass "UL Test" & "FT4/IEEE 1202" (70,000 Btu/hr) Vertical Cable
- Tray Flame Test
- NFPA 70 (National Electrical Code), Article 330
- Listed for use in UL 1, 2, and 3 Hour Through-Penetration Fire Stop Systems
- REACH/RoHS-2 (Chemical Limit) Compliant
Construction
Southwire Armorlite® Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN-2 conductors rated 90°C dry, and a bare copper grounding conductor for sizes 1/0 AWG and larger. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. Also available in steel. Conductors are black with phase identification. Colors available upon request with economic order quantity.
