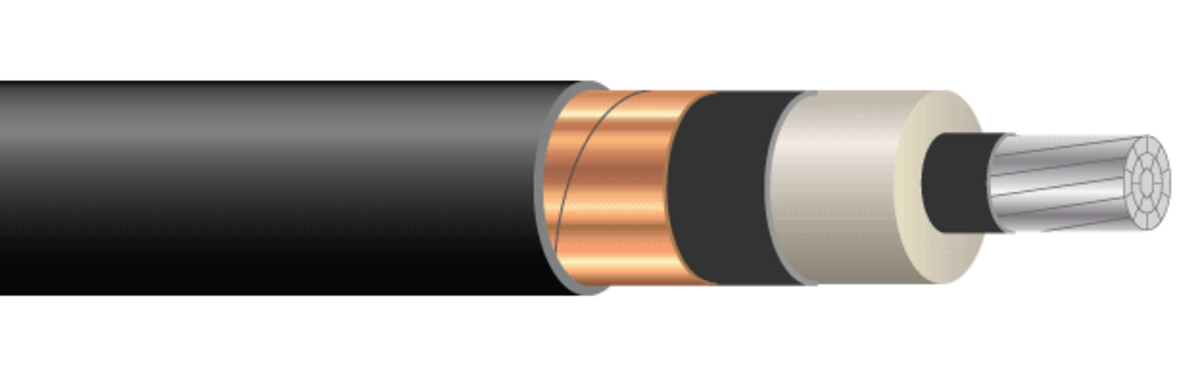

Type MV-105 Single Conductor Aluminum, 115 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level, Tape Shield, SIMpull Polyvinyl Chloride (PVC) Jacket, Dual Rated UL/CSA
Download Category Specifications:
PDF Excel Table

Application

Southwire’s 5KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated at -35°C for cold bend. ST1 (low smoke) Rated for sizes 1/0 and larger. PVC jacket is made with SIM technology and has a coefficient of friction COF of 0.2. Cable can be installed in conduit without the aid of lubrication. Rated for 1000 lbs./FT maximum sidewall pressure.

Specifications

measurement
imperial metric
Select a set of products below for more information:
Conductor Ground Wire
No. of Conductors Size (AWG or kcmil) No. of Strands Insulation Thickness (mils) (mm) Size (AWG) No. of Strands Nom. OD (mils) (mm) Nominal Total Weight (lbs/1000') (kgs/km) Allowable Ampacity
560182 1 1 2 AWG 2 AWG 7 7 115 2.92 790 20.07 343 510
559953 1 1 1/0 AWG 1/0 AWG 10 10 115 2.92 814 20.68 378 562
560116 1 1 2/0 AWG 2/0 AWG 12 12 115 2.92 884 22.45 447 665
560147 1 1 500 KCMIL 500 KCMIL 35 35 115 2.92 1264 32.11 984 1464
577321 1 1 600 KCMIL 600 KCMIL 41 41 115 2.92 1343 34.11 1121 1669
560179 1 1 750 KCMIL 750 KCMIL 58 58 115 2.92 1446 36.73 1312 1953
560180 1 1 1000 KCMIL 1000 KCMIL 58 58 115 2.92 1608 40.84 1632 2429
