SOUTHWIRE SYSTEM CONTROL CABLE FOR LUTRON DEVICES
Application
ELECTRONICS CABLE SPECIFICATIONS FOR SELECT CONTROL SYSTEMS
Specifications
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) (mm2) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| H91834 |
4
4
|
22 AWG
22 AWG
|
16
16
|
|
|
|
265
6.73
|
36
53
|
|
| H91835 |
5
5
|
22 AWG
22 AWG
|
7
7
|
9
0.23
|
|
|
404
10.26
|
82
122
|
|
Standards & References
CMR/CL3R
- UL 444/NEC ARTICLE 800/CSA C22.2 by C(UL)
- UL 1666/CSA FT4
- 60C/300V
- ROHS-2 COMPLIANT
Construction

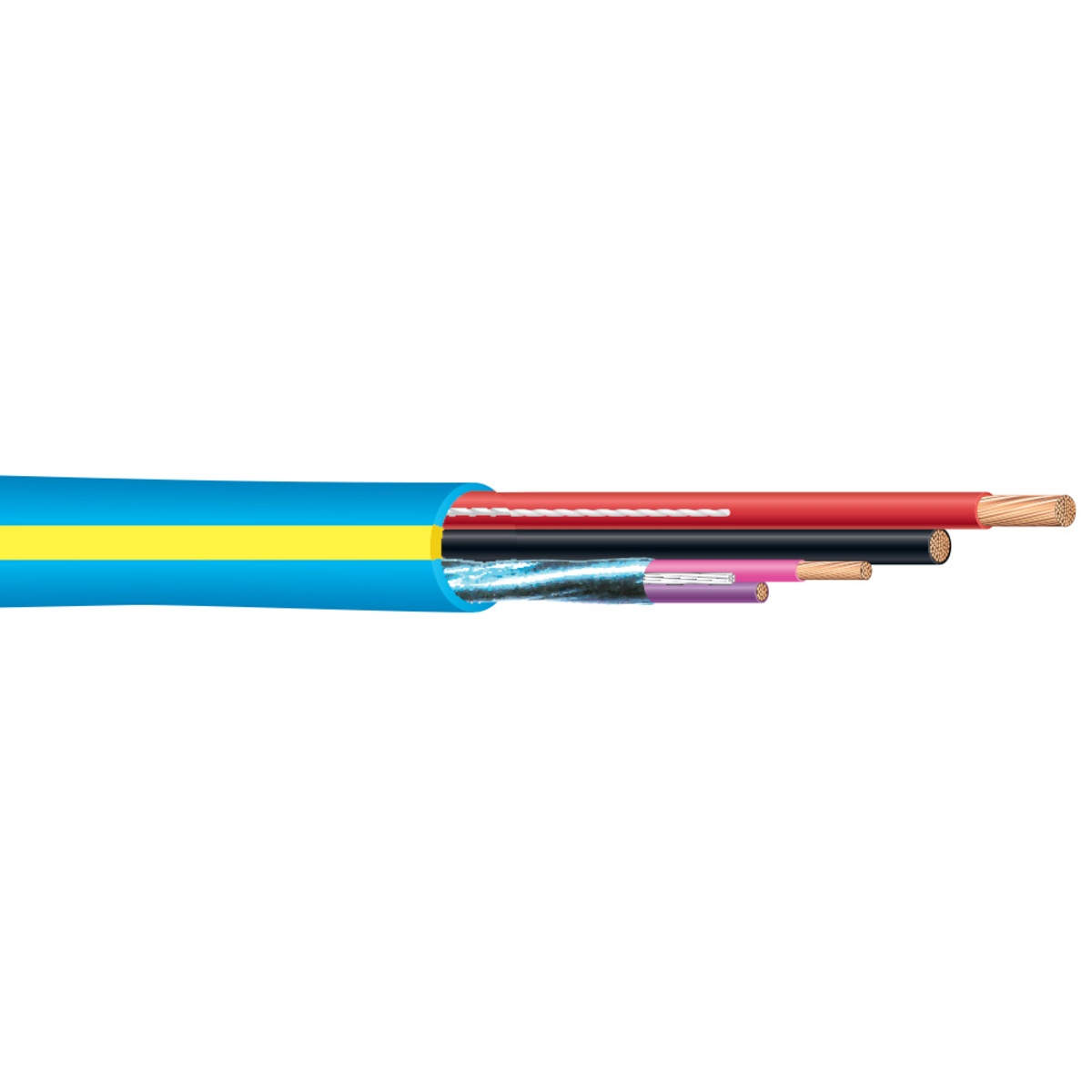

CONDUCTORS: 22 AWG, 1 PAIR STRANDED BC & 18 AWG, 1 PAIR STRANDED BC
- Jacket: PVC
- Shield/Drain: FOIL, 20 AWG 7 STR TC
- Insulation: 22 AWG FOAMED PE, COLORS: WHITE, VIOLET
- Insulation: 18 AWG PVC, COLORS: BLACK, RED
