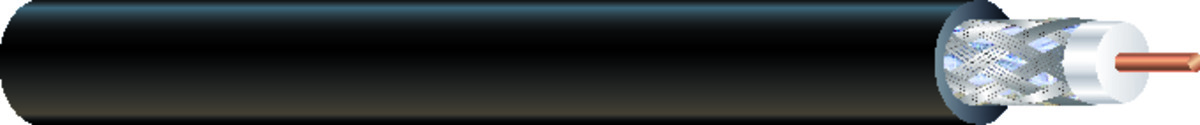

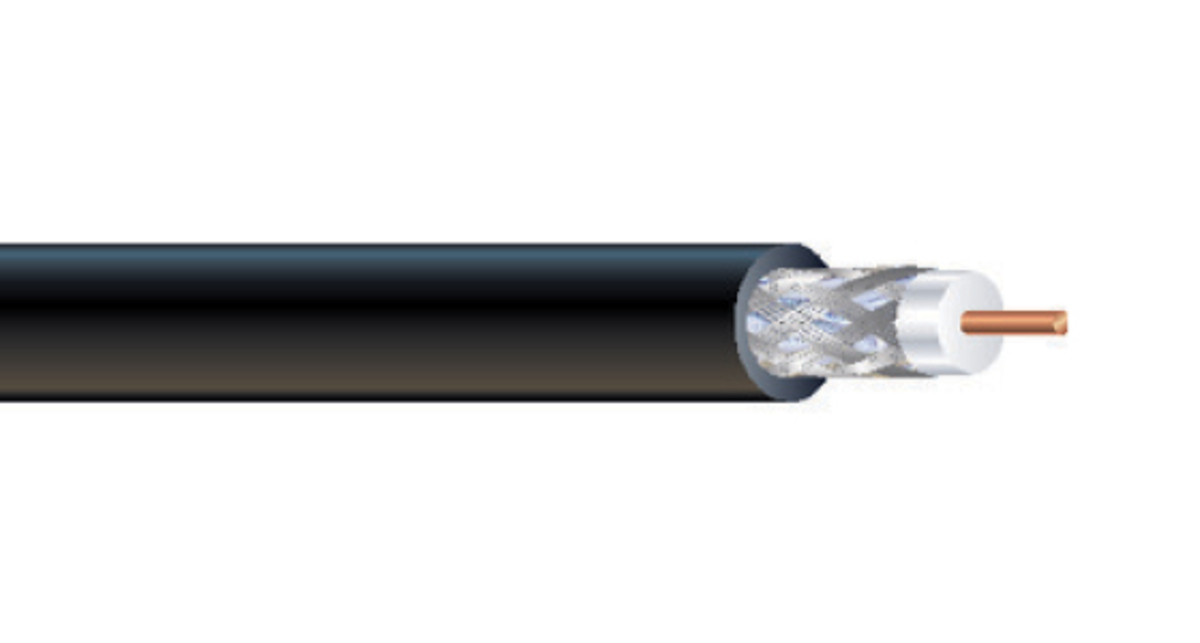

RG-59/U PLENUM COAXIAL CABLE WITH 95% BRAID, SWEEP TO 1000 MHZ

RG-59/U PLENUM COAXIAL CABLE WITH 95% BRAID, SWEEP TO 1000 MHZ

SKU: 999690601
Download Category Specifications:
Excel Table
Select Product Specifications
Construction
Outer Jacket / Armor Color
Packaging

Application

Southwire CCTV Broadband Coax cable, Plenum rated used for security video camera applications. This type coax used to drive video signals for video and telephony signals, community antenna television system, master antenna and for broadband internet access.

Specifications

measurement
imperial metric
Stock # 999690601 999690601
No. of Conductors 0 0
Size (AWG or kcmil) 20 AWG 20 AWG
No. of Strands 1 1
Nom. OD (mils) (mm) 196 4.98 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 25 38 lbs/1000' kgs/km

Standards & References

  • NEC Article 725 CL2P
  • NEC Article 800 CMP
  • UL-910 Steiner Tunnel Flame Test
  • Directive (EU) 2015/863 – RoHS 3

Construction

Conductors: 22 AWG (1/.025) Soild Bare Copper

  • Insulation: Foam FEP color natural
  • Shielding: Polyester/Aluminum Fusible Tape plus 95% Aluminum Braid
  • Jacket: PVC, Black
