Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor; however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.
|Stock #||61373445 61373445|
|No. of Conductors||1 1|
|Size (AWG or kcmil) (mm2)||336.4 KCMIL 336.4 KCMIL|
|No. of Strands||19 19|
|Nom. OD (mils) (mm)||1133 28.78||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||618 919||lbs/1000' kgs/km|

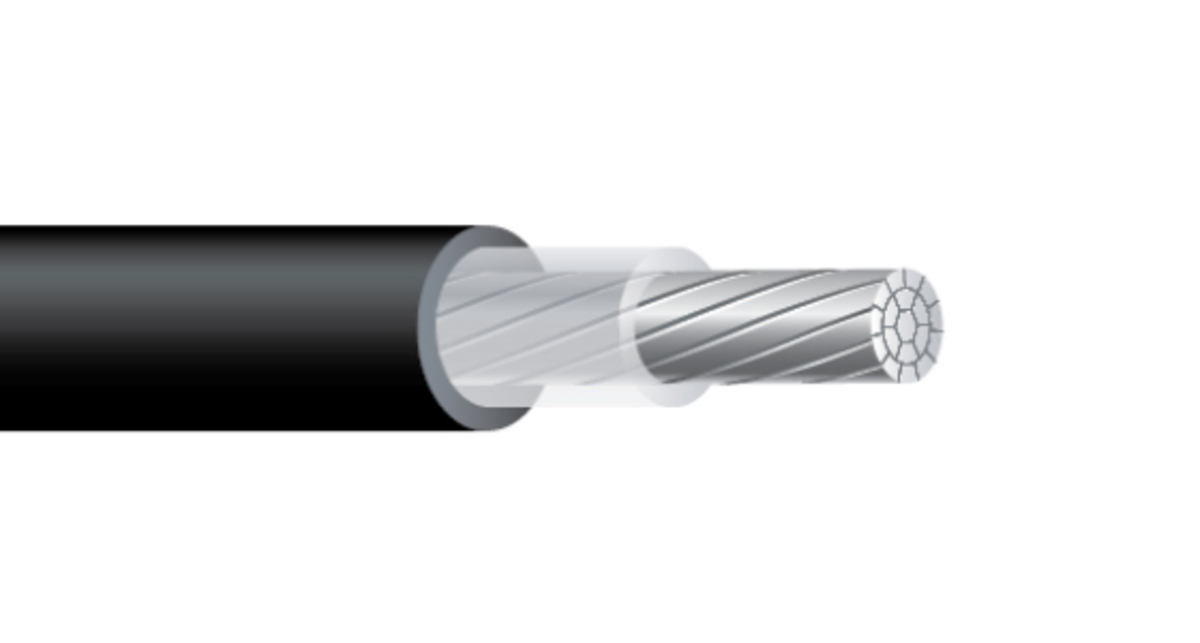

Southwire’s 15kV – 35kV covered multi-layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM specifications:
Conductors are concentrically stranded, AAC (1350-H19), either compressed or full compact depending on conductor size, AAAC. Available with high-density track-resistant polyethylene.
