Aluminum Service Entrance (SEU) Cable with Alumaflex® Brand Conductors
Type SE, Style SEU Service Entrance Cable. 600 Volt. Alumaflex® Brand Aluminum Alloy (AA-8176) Conductors. Individual Conductors Rated XHHW or THHN/THWN Jacket and Inner Conductors are Sunlight Resistant.
Application
Southwire Type SE, Style SEU service entrance cable is primarilty used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard; however, it may be used in all applications where Type SE cable is permitted. SE may be used in wet or dry above ground locations at temperatures not to exceed 90°C. The voltage rating is 600 volts.
Specifications
Select a set of products below for more information:
| Conductor | Neutral Wire | Allowable Ampacities | |||||||||||
| Size (AWG or kcmil) (mm2) | No. of Conductors | No. of Strands | Size (AWG) | No. of Neutrals | No. of Strands | Nom. Height (mils) (mm) | Nom. Width (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity at 60C | Allowable Ampacity at 75C | Allowable Ampacity at 90C | Allowable Ampacity in Dwelling | |
| 130856 |
8 AWG
8 AWG
|
2
2
|
1
1
|
8
8
|
1
1
|
8
8
|
378
9.61
|
581
14.76
|
101
151
|
30
30
|
40
40
|
45
45
|
|
| 130864 |
6 AWG
6 AWG
|
2
2
|
7
7
|
6
6
|
1
1
|
12
12
|
419
10.64
|
662
16.81
|
140
208
|
40
40
|
50
50
|
60
60
|
|
| 130948 |
4 AWG
4 AWG
|
2
2
|
7
7
|
6
6
|
1
1
|
12
12
|
483
12.27
|
790
20.07
|
184
273
|
55
55
|
65
65
|
75
75
|
|
| 130872 |
4 AWG
4 AWG
|
2
2
|
7
7
|
4
4
|
1
1
|
12
12
|
508
12.90
|
815
20.70
|
200
298
|
55
55
|
65
65
|
75
75
|
|
| 130955 |
2 AWG
2 AWG
|
2
2
|
6
6
|
4
4
|
1
1
|
12
12
|
563
14.30
|
925
23.50
|
262
389
|
75
75
|
90
90
|
100
100
|
100
100
|
| 130880 |
2 AWG
2 AWG
|
2
2
|
6
6
|
2
2
|
1
1
|
15
15
|
570
14.49
|
928
23.58
|
279
416
|
75
75
|
90
90
|
100
100
|
100
100
|
| 130898 |
1 AWG
1 AWG
|
2
2
|
8
8
|
1
1
|
1
1
|
14
14
|
654
16.63
|
1069
27.17
|
361
537
|
85
85
|
100
100
|
115
115
|
110
110
|
| 130906 |
1/0 AWG
1/0 AWG
|
2
2
|
10
10
|
1/0
1/0
|
1
1
|
18
18
|
681
17.31
|
1127
28.64
|
421
627
|
100
100
|
120
120
|
135
135
|
125
125
|
| 130963 |
2/0 AWG
2/0 AWG
|
2
2
|
12
12
|
1
1
|
1
1
|
14
14
|
721
18.33
|
1207
30.67
|
460
685
|
115
115
|
135
135
|
150
150
|
150
150
|
| 130914 |
2/0 AWG
2/0 AWG
|
2
2
|
12
12
|
2/0
2/0
|
1
1
|
18
18
|
733
18.62
|
1214
30.85
|
521
775
|
115
115
|
135
135
|
150
150
|
150
150
|
| 130971 |
4/0 AWG
4/0 AWG
|
2
2
|
19
19
|
2/0
2/0
|
1
1
|
18
18
|
836
21.25
|
1421
36.11
|
683
1016
|
150
150
|
180
180
|
205
205
|
205
205
|
| 130930 |
4/0 AWG
4/0 AWG
|
2
2
|
19
19
|
4/0
4/0
|
1
1
|
18
18
|
879
22.35
|
1464
37.21
|
757
1126
|
150
150
|
180
180
|
205
205
|
205
205
|
Standards & References
- ASTM B800 and either B801 or B836 (SIW)
- UL Standard 44 for XHHW-2
- UL Standard 83 for THHN/THWN-2
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
- RoHS/Reach Compliant
Construction

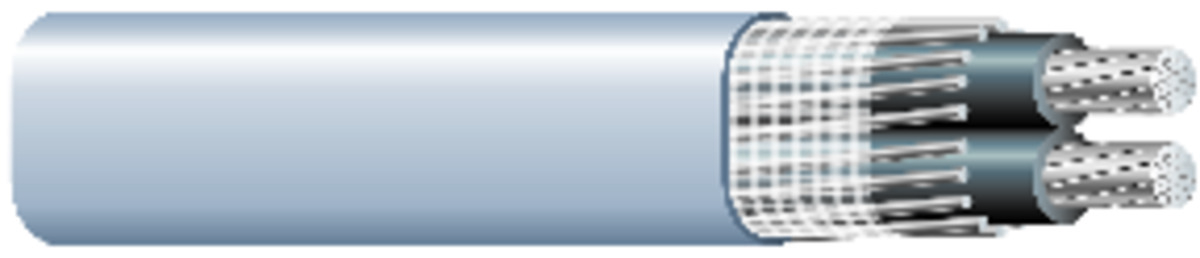

- Southwire style SEU cable is constructed with Alumaflex® AA-8000 series aluminum alloy, compacted stranded conductors. The conductors are covered with a sunlight resistant Type XHHW-2 or Type THHN/THWN-2-insulation. A reinforcement tape is wrapped around the conductors for added strength and conformity. A gray sunlight-resistant polyvinyl chloride (PVC) outer jacket covers the entire assembly. Type SEU cable has two phase conductors surrounded by a concentric neutral.
