3/C CU 600V XLPE XHHW-2 ARMOR-X PVC Power Cable With Ground VFD
Type MC-HL Power Cable 600Volt Three Conductor Copper, Cross Linked Polyethylene (XLPE) insulation XHHW-2 Continuous Corrugated Welded Armor (Armor-X), Polyvinyl Chloride (PVC) Jacket with 3 Bare CU Ground
Download Category Specifications
Excel Table
Application
Southwire’s 600 Volt Type MC-HL Armor-X® power cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, 250°C for short circuit conditions, and -50°C for cold bend. For uses in Class I, II, and III, Division 1 and 2 hazardous locations per NEC Article 501, 502, and 503. Suitable for VFD application.
Specifications
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) (mm2) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| 550593 |
3
3
|
8 AWG
8 AWG
|
7
7
|
45
1.14
|
14
14
|
|
870
22.10
|
423
629
|
|
| 890513 |
3
3
|
6 AWG
6 AWG
|
7
7
|
45
1.14
|
12
12
|
|
960
24.38
|
565
841
|
|
| 890514 |
3
3
|
4 AWG
4 AWG
|
7
7
|
45
1.14
|
12
12
|
|
1040
26.42
|
734
1092
|
|
| 890515 |
3
3
|
2 AWG
2 AWG
|
7
7
|
45
1.14
|
10
10
|
|
1140
28.96
|
1082
1610
|
|
| 890516 |
3
3
|
1/0 AWG
1/0 AWG
|
19
19
|
55
1.40
|
10
10
|
|
1470
37.34
|
1766
2628
|
|
| 890517 |
3
3
|
2/0 AWG
2/0 AWG
|
19
19
|
55
1.40
|
10
10
|
|
1596
40.54
|
1968
2928
|
|
| 890518 |
3
3
|
3/0 AWG
3/0 AWG
|
19
19
|
55
1.40
|
8
8
|
|
1666
42.32
|
2426
3611
|
|
| 890519 |
3
3
|
4/0 AWG
4/0 AWG
|
19
19
|
55
1.40
|
8
8
|
|
1710
43.43
|
2833
4215
|
|
| 890520 |
3
3
|
250 KCMIL
250 KCMIL
|
37
37
|
65
1.65
|
8
8
|
|
1965
49.91
|
3346
4980
|
|
| 890521 |
3
3
|
350 KCMIL
350 KCMIL
|
37
37
|
65
1.65
|
6
6
|
|
2160
54.86
|
4529
6740
|
|
| 890522 |
3
3
|
500 KCMIL
500 KCMIL
|
37
37
|
65
1.65
|
6
6
|
|
2448
62.18
|
6002
8932
|
|
| 890523 |
3
3
|
750 KCMIL
750 KCMIL
|
61
61
|
80
2.03
|
4
4
|
|
3150
80.01
|
9633
14336
|
|
Standards & References
- ASTM B3 Standard Specification for Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 44 Thermoset-Insulated Wires and Cables
- UL 1309 Marine Shipboard Cable
- UL 1569 Metal-Clad Cables
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- ICEA S-58-679 Control Cable Conductor Identification Method 3 (1-BLACK, 2-RED, 3-BLUE)
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- IEEE 1202 FT4 Vertical Tray Flame Test (70,000 Btu/hr) and ICEA T-29-520 - (210,000 Btu/hr)
- ABS Listed as CWCMC

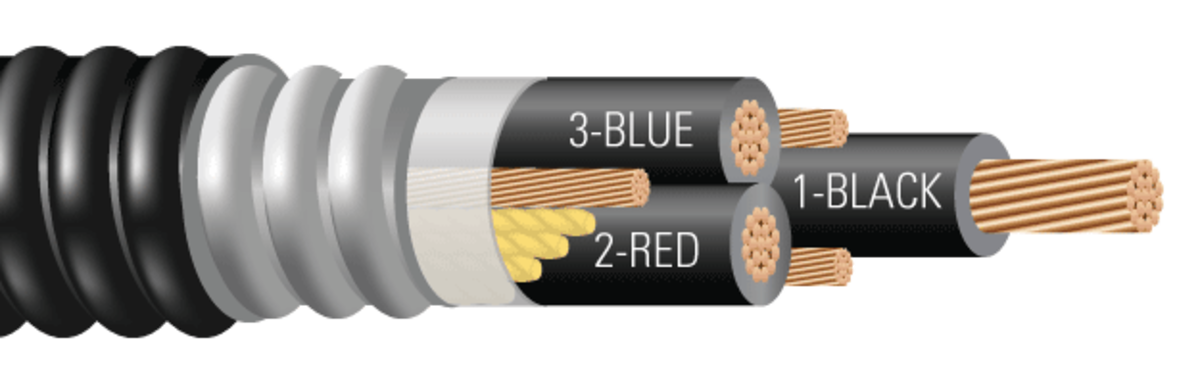

Construction
- Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
- Insulation:Cross Linked Polyethylene (XLPE) Type XHHW-2
- Grounding Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
- Filler:Paper filler (cable size 8 & 6 uses Polypropylene filler)
- Binder:Polypropylene tape
- Armor:Continuous Corrugated Welded Armor (Armor-X)
- Overall Jacket:Polyvinyl Chloride (PVC) Jacket
