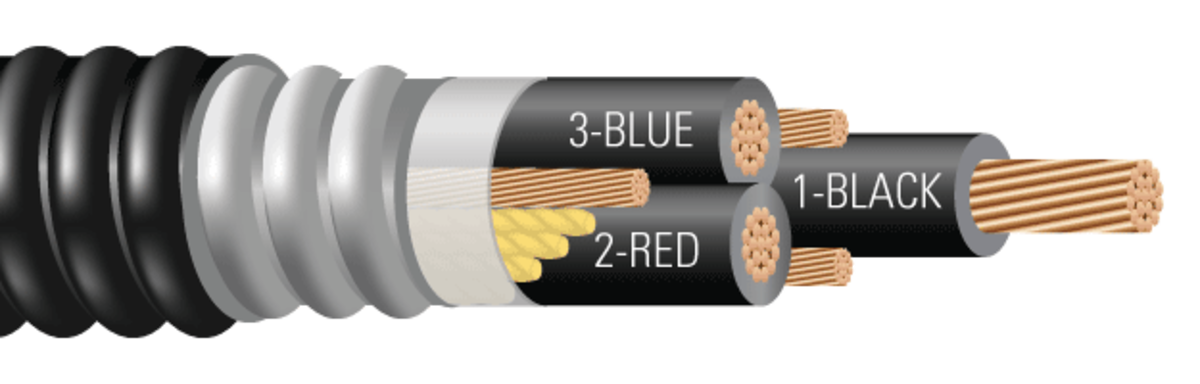

3/C CU 600V XLPE XHHW-2 AIA PVC Power Cable With Ground. Silicone Free.
Type MC Power Cable 600Volt Three Conductor Copper, Cross Linked Polyethylene (XLPE) insulation XHHW-2 Aluminum Interlocked Armor (AIA), Polyvinyl Chloride (PVC) Jacket with 1 Bare CU Ground. Silicone Free.
Application
Southwire’s 600 Volt Type MC power cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10. Silicone Free.
Specifications
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) (mm2) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| 606939 |
3
3
|
8 AWG
8 AWG
|
7
7
|
45
1.14
|
|
|
812
20.64
|
397
590
|
|
| 606947 |
3
3
|
6 AWG
6 AWG
|
7
7
|
45
1.14
|
|
|
888
22.56
|
542
806
|
|
| 606954 |
3
3
|
4 AWG
4 AWG
|
7
7
|
45
1.14
|
|
|
998
25.36
|
709
1056
|
|
| 560466 |
3
3
|
2 AWG
2 AWG
|
7
7
|
45
1.14
|
|
|
1119
28.43
|
1042
1551
|
|
| 560474 |
3
3
|
1/0 AWG
1/0 AWG
|
19
19
|
55
1.40
|
|
|
1333
33.86
|
1494
2224
|
|
| 560482 |
3
3
|
2/0 AWG
2/0 AWG
|
19
19
|
55
1.40
|
|
|
1428
36.28
|
1811
2696
|
|
| 890339 |
3
3
|
3/0 AWG
3/0 AWG
|
19
19
|
55
1.40
|
|
|
1536
39.02
|
2250
3349
|
|
| 383679 |
3
3
|
4/0 AWG
4/0 AWG
|
19
19
|
55
1.40
|
|
|
1751
44.48
|
2779
4136
|
|
| 601377 |
3
3
|
250 KCMIL
250 KCMIL
|
37
37
|
65
1.65
|
|
|
1889
47.99
|
3371
5016
|
|
| 383646 |
3
3
|
350 KCMIL
350 KCMIL
|
37
37
|
65
1.65
|
|
|
2103
53.43
|
4542
6759
|
|
| 380618 |
3
3
|
500 KCMIL
500 KCMIL
|
37
37
|
65
1.65
|
|
|
2403
61.05
|
6167
9177
|
|
| 890391 |
3
3
|
600 KCMIL
600 KCMIL
|
61
61
|
80
2.03
|
|
|
2688
68.28
|
7577
11276
|
|
| 890405 |
3
3
|
750 KCMIL
750 KCMIL
|
61
61
|
80
2.03
|
|
|
2908
73.88
|
9211
13708
|
|
Standards & References
- ASTM B3 Standard Specification for Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 44 Thermoset-Insulated Wires and Cables
- UL 1309 Marine Shipboard Cable
- UL 1569 Metal-Clad Cables
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- ICEA S-58-679 Control Cable Conductor Identification Method 3 (1-BLACK, 2-RED, 3-BLUE)
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- IEEE 1202 FT4 Vertical Tray Flame Test (70,000 Btu/hr) and ICEA T-29-520 - (210,000 Btu/hr)
- ABS Listed as CWCMC
Construction
- Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
- Insulation:Cross Linked Polyethylene (XLPE) Type XHHW-2
- Grounding Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
- Filler:Paper filler (cable size 8 & 6 uses Polypropylene filler)
- Binder:Polypropylene tape
- Armor:Aluminum Interlocked Armor (AIA)
- Overall Jacket:Polyvinyl Chloride (PVC) Jacket
