3/C CU 5kV 115 NLEPR 133% AIA CPE MV-105

3/C CU 5kV 115 NLEPR 133% AIA CPE MV-105

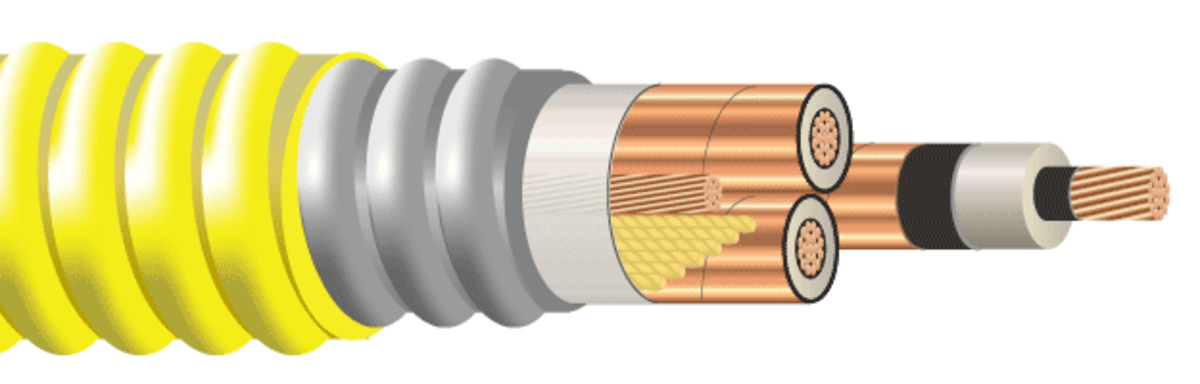

Type MV-105 Three Conductor Copper, 115 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level, Tape Shield, Aluminum Interlocked Armor (AIA), Chlorinated Polyethylene (CPE) Jacket
Download Category Specifications:
PDF Excel Table

Application

Specifications

measurement
imperial metric
Select a set of products below for more information:
Conductor Ground Wire
No. of Conductors Size (AWG or kcmil) No. of Strands Insulation Thickness (mils) (mm) Size (AWG) No. of Strands Nom. OD (mils) (mm) Nominal Total Weight (lbs/1000') (kgs/km) Allowable Ampacity
677577 3 3 500 KCMIL 500 KCMIL 37 37 115 2.92 1 1 2901 73.71 7668 11411

Standards & References

Construction

Resources

There are no downloadable resources for this product.
