3/C CU 2.4kV 90 EPR ARMOR-X PVC MV-105 VFD. Type MC-HL
Type MV-105 Three Conductor Copper, 90 Mils Ethylene Propylene Rubber (EPR) Continuous Corrugated Welded Armor (Armor-X), Polyvinyl Chloride (PVC) Jacket. Suitable for VFD Applications. Type MC-HL
Download Category Specifications
Excel Table
Application
Southwire’s 2.4KV ARMOR-X Type MC-HL are armored cables for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 130°C for emergency overload, 250°C for short circuit conditions, and -50°C for cold bend. For uses in Class I, II, and III, Division 1 and 2 hazardous locations per NEC Article 501, 502, and 503. Suitable for VFD application.
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| 890615 | 3 3 | 2 AWG 2 AWG | 7 7 | 10 10 | 1570 39.88 | 1433 2132 | |||
| 890616 | 3 3 | 1/0 AWG 1/0 AWG | 19 19 | 8 8 | 1660 42.16 | 1961 2918 | |||
| 890617 | 3 3 | 2/0 AWG 2/0 AWG | 19 19 | 8 8 | 1810 45.97 | 2339 3480 | |||
| 890619 | 3 3 | 250 KCMIL 250 KCMIL | 37 37 | 6 6 | 2180 55.37 | 3784 5632 | |||
| 890620 | 3 3 | 350 KCMIL 350 KCMIL | 37 37 | 6 6 | 2460 62.48 | 5277 7852 | |||
| 890621 | 3 3 | 500 KCMIL 500 KCMIL | 37 37 | 4 4 | 2820 71.63 | 6810 10134 | |||
| 890622 | 3 3 | 750 KCMIL 750 KCMIL | 61 61 | 4 4 | 3170 80.52 | 9735 14487 | |||
Standards & References
- ASTM B3 Standard Specification for Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 1072 Medium-Voltage Power Cables
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- ICEA S-96-659 (NEMA WC 71) 2001-5000 V Nonshielded Cables
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- ABS Listed as CWCMC

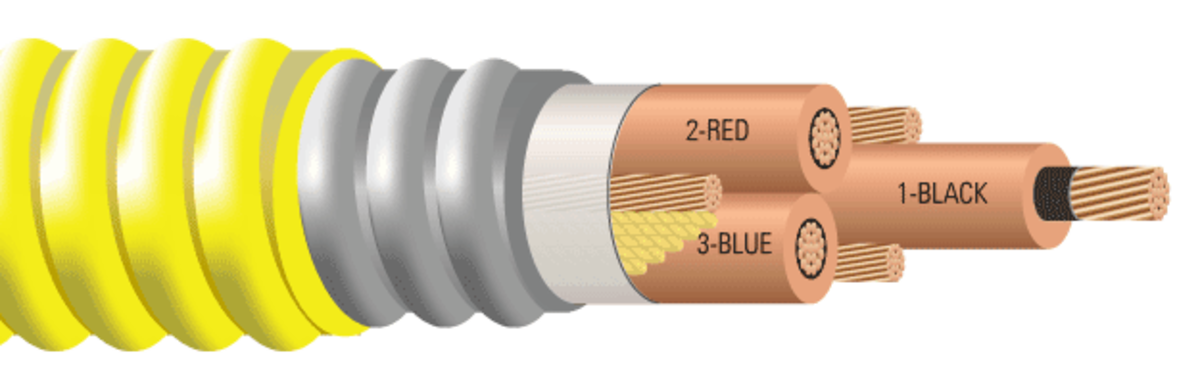

Construction
- Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
- Conductor Shield:Semi-conducting cross-linked copolymer
- Insulation:90 Mils Ethylene Propylene Rubber (EPR)
- Grounding Conductor:3 Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8
- Filler:Wax paper filler
- Binder:Polypropylene tape
- Armor:Continuous Corrugated Welded Armor (Armor-X)
- Overall Jacket:Polyvinyl Chloride (PVC)
