500-37 3/C CU 220 NL-EPR T/S 1X1CU GW AIA RED SOLONON-TP JACKET 15KV 133% 0 FT

SKU: 58567599

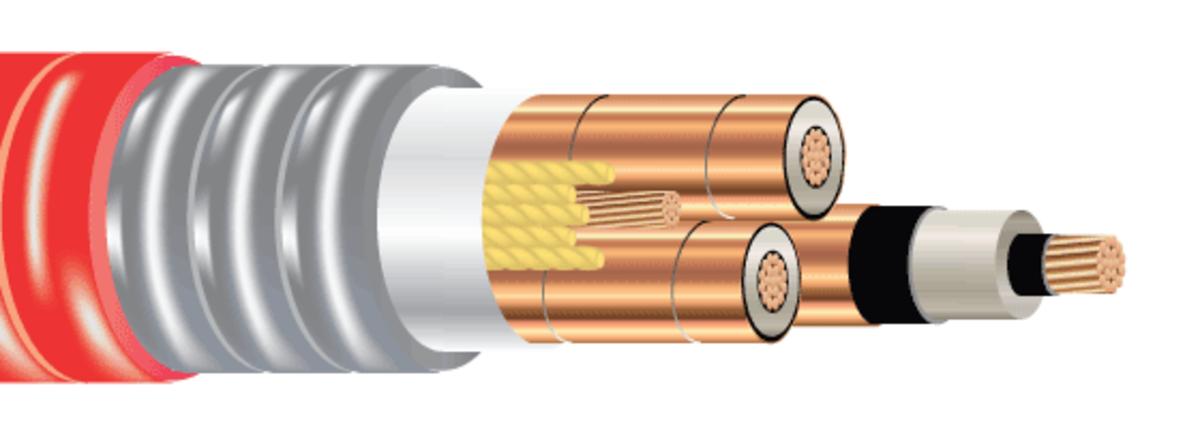

Type MV-105 Three Conductor Copper, 175 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 100% Insulation Level, Tape Shield, Aluminum Interlocked Armor (AIA), Polyvinyl Chloride (PVC) Jacket
Download Category Specifications:
PDF Excel Table
Register or Save Product
Add to Bill of Materials
Select Product Specifications
Construction
Outer Jacket / Armor Color
Conductor Color
Packaging

Application

Specifications

measurement
imperial metric
Stock # 58567599 58567599
No. of Conductors 3 3
Size (AWG or kcmil) 500 KCMIL 500 KCMIL
No. of Strands 37 37
Insulation Thickness (mils) (mm) 220 5.59 mils mm
Size (AWG) 1 1
Nom. OD (mils) (mm) 3429 87.10 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 8135 12106 lbs/1000' kgs/km

Standards & References

Construction

Resources

There are no downloadable resources for this product.
