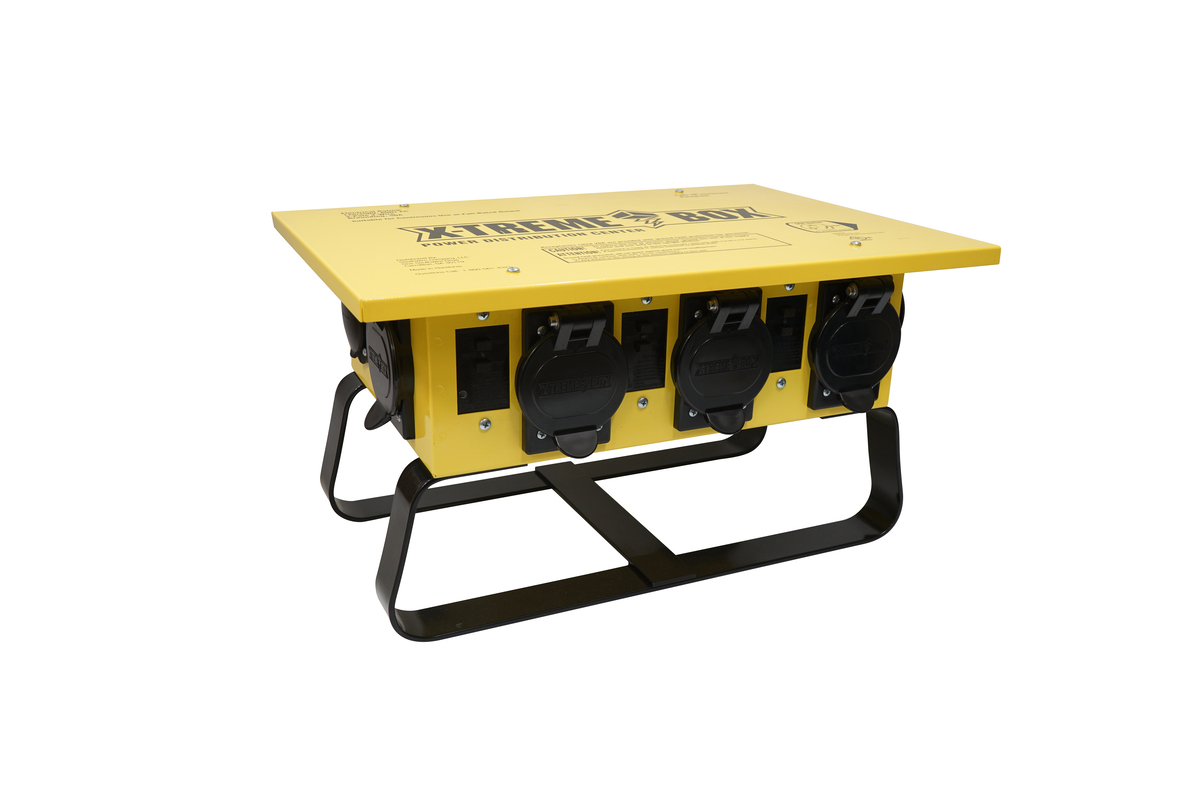

X-Treme Box™ Temporary Power Distribution

Southwire #: 19763R02 Model #: 19763R02

50A X-Treme Box[TM] with Straight Blade Receptacles & Sled Base 3-Circuit

Download Category Specifications
PDF Excel Table
Register Product
Register Product

Features & Benefits

  • 6 NEMA L5-20R 20A twist-to-lock receptacles
  • Dedicated GFCI Module and circuit breaker for each pair of 20 amp receptacles
  • Sled Style Base
  • Premium breakers and all-copper backplane for superior performance
  • OHA/NEC/CEC Compliant, cULus Listed to NEMA 3R
  • Advanced GFCI technology with open neutral and over-voltage protection
  • 50A California Standard twist-to-lock inlet and outlet
  • 30A NEMA L6-30R twist-to-lock receptacle

Specifications

measurement
imperial metric
Stock # 19763R02 19763R02
Model # 19763R02 19763R02
UPC # 029892765217 029892765217
Product Height 22.0 55.88 inch cm
Product Width 16.0 40.64 inch cm
Depth 11.75 29.85 inch cm
Product Weight 35.86 16.27 lbs kg
Maximum Amps 50A 50A
Power Specifications 125/250V 50-Amp 3P4W 125/250V 50-Amp 3P4W
Input Connector 50-Amp 125/250V 3P4W CA-Style 6375 50-Amp 125/250V 3P4W CA-Style 6375
Feed-Thru Connector 50-Amp 125/250V 3P4W CA-Style 6369 50-Amp 125/250V 3P4W CA-Style 6369
Outputs 6 x NEMA 125V 20-Amp 5-20 single receptacles with dedicated GFCI Protection on 3 circuit breakers and 1 x 250V 30-Amp L6-30 6 x NEMA 125V 20-Amp 5-20 single receptacles with dedicated GFCI Protection on 3 circuit breakers and 1 x 250V 30-Amp L6-30
Style Sled Base Sled Base
