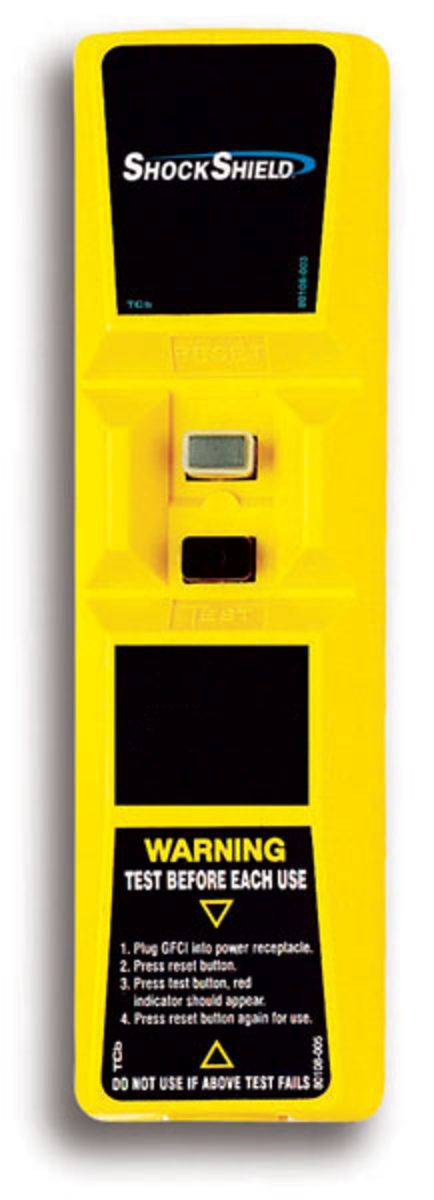

2' 240V/20A In-Line GFCI

Southwire #: 26000011-6 Model #: 26000011-6 Out of Stock

Excellent for industrial plant maintenance, equipment service and construction site applications.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Applications Include: High Pressure Sprayer Washers, Construction Site Power Tools, Drain Snakes, Pumps, Construction Sites, Industrial Appliances
  • NEMA 6-20 P&R, Black
  • Grounded Neutral: 4 Ohms
  • Trip Response Time for Ground Fault and Grounded Neutral Trip: Less Than 25mS
  • Radio Frequency Noise Susceptibility: Operates Within Normal Limits With 0.5 Volts Injected On Power Line 150Khz-230Mhz
  • Effect of 10 Amp Turn DC Shock Fault Trip: 5% Maximum Trip Level Variation on Ground
  • Endurance: 3,000 Operations Minimum
  • Overload Current: Six Times Rated Current
  • Insulation Voltage: 1500 Vrms - 1 Min.
  • Cord Gauge: 12/3 AWG

Specifications

measurement
imperial metric
Stock # 26000011-6 26000011-6
Model # 26000011-6 26000011-6
UPC # 024098901292 024098901292
Product Height 2.0 5.08 inch cm
Product Width 2.0 5.08 inch cm
Depth 24.0 60.96 inch cm
Product Weight 0.8 0.36 lbs kg
Maximum Amps 20A 20A
CUL Certified Yes Yes
Cord Length (ft) (cm) 2 60.96
Gauge 12/3 12/3
Material SJTW SJTW
