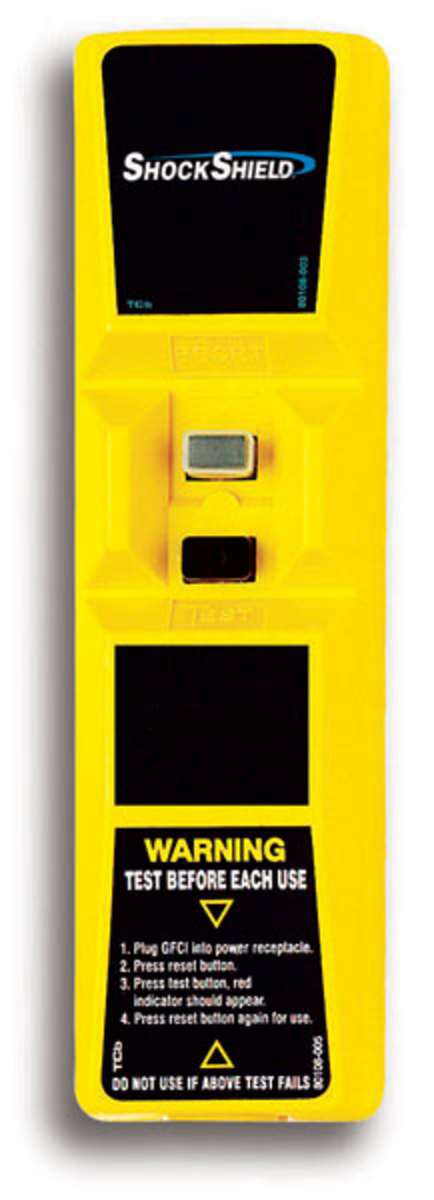

120V/20A In-Line GFCI User Attachable
Southwire #: 30040006-6
Model #: 30040006-6
The in-line user attachable is ideal for existing equipment without GFCI protection, and can be easily attached by connecting the GFCI in series with the supply cable 9 to 10 inches from the plug end to provide GFCI protection.
Download Category Specifications
Excel Table
Register Product
Register Product
Features & Benefits
- Applications Include: Pressure Washers, Drain Snakes, Floor Cleaners, Industrial Appliances, Power Tools, Pumps, Boat Lifts, Extension Cords
- Grounded Neutral: 4 Ohms Typical
- Trip Response Time for Ground Fault and Grounded Neutral Trip: Less Than 25mS and grounded neutral trip
- Radio Frequency Noise Susceptibility: Operates Within Normal Limits With 0.5 Volts Injected On Power Line 150Khz-230Mhz
- Effect of 10 Amp Turn DC Shock Fault Trip: 5% Maximum Trip Level Variation on Ground
- Endurance: 3,000 Operations Minimum
- Overload Current: Six Times Rated Current
- Insulation Voltage: 1500 Vrms - 1 Min.
- Cord Gauge: Accepts 16 - 12 AWG (ST)
- Power On Indication: Mechanical Indicator
| Stock # | 30040006-6 30040006-6 | |
| Model # | 30040006-6 30040006-6 | |
| UPC # | 024098904804 024098904804 | |
| Product Height | 2.0 5.08 | inch cm |
| Product Width | 2.0 5.08 | inch cm |
| Depth | 7.0 17.78 | inch cm |
| Product Weight | 0.3 0.14 | lbs kg |
| Maximum Amps | 20 20 |
